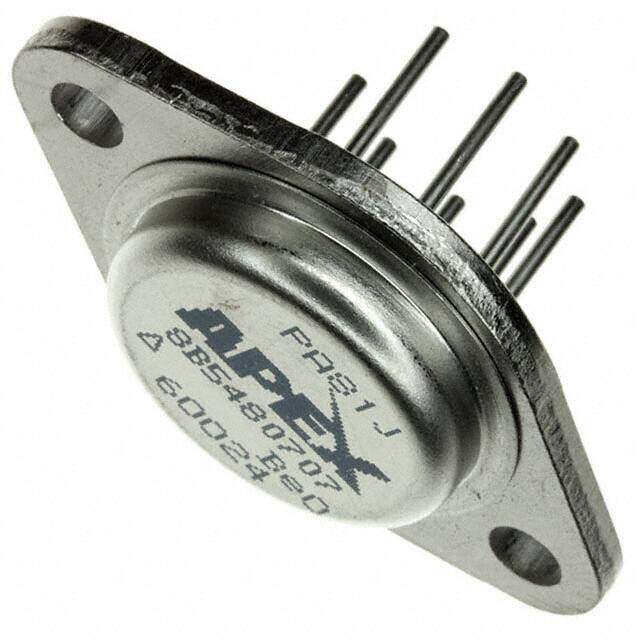

PA81J
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant O-MBFM-P8 PA81 NICKEL op amp amplifier circuit 8.5mA 1.5mV 5000kHz 5MHz
PDF
/
Buying Options
Total Price: USD $160.37
Unit Price: USD $160.3657
≥1 USD $160.3657
≥10 USD $143.7768
Inventory: 58
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Voltage Gain-Min 50000
Power YES
Bias Current-Max (IIB) @25C 0.00005μA
Low-Bias YES
Frequency Compensation YES
Low-Offset NO
Average Bias Current-Max (IIB) 0.00005μA
Unity Gain BW-Nom 5000 kHz
Neg Supply Voltage-Nom (Vsup) -75V
Gain Bandwidth Product 5MHz
Input Offset Voltage (Vos) 1.5mV
Output Current per Channel 30mA
Voltage - Supply, Single/Dual (±) 64V~150V ±32V~75V
Current - Input Bias 5pA
Common Mode Rejection Ratio 110 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 20V/μs
Supply Current-Max 8.5mA
Operating Supply Current 6.5mA
Number of Circuits 1
Power Supplies +-75V
Qualification Status Not Qualified
JESD-30 Code O-MBFM-P8
Pin Count 2
Base Part Number PA81
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 75V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology BIPOLAR
Subcategory Operational Amplifier
Terminal Finish NICKEL
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Apex Precision Power?
Published 2011
Packaging Tube
Operating Temperature 0°C~70°C
