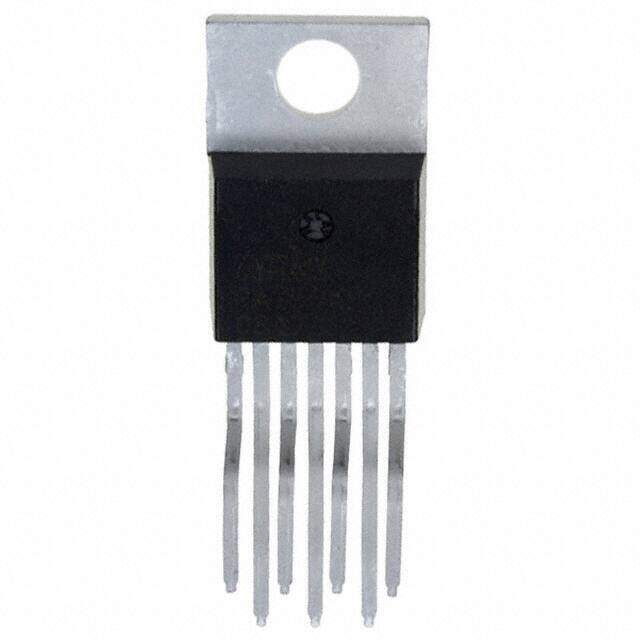

PA75CX
RoHS
RoHS compliant
RoHS compliantPackage TO-220-7 (Formed Leads)
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant PA75 Tube Apex Precision Power? op amp buffer circuit 25.26mm 100nA 15V 100dB
PDF
/
Buying Options
Total Price: USD $129
Unit Price: USD $129.0043
≥1 USD $129.0043
≥10 USD $124.7046
≥100 USD $111.8036
Inventory: 1150
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4.38mm
Height 25.26mm
Technical
Dual Supply Voltage 15V
Current - Output / Channel 1.5A
Voltage - Input Offset 1mV
Voltage Gain 100dB
Gain Bandwidth Product 1.4MHz
Input Offset Voltage (Vos) 1mV
Output Current per Channel 1.5A
Voltage - Supply, Single/Dual (±) 5V~40V ±2.5V~20V
Current - Input Bias 100nA
Amplifier Type Power
Slew Rate 1.4V/μs
Current - Supply 8mA
Operating Supply Current 8mA
Number of Circuits 2
Operating Supply Voltage 30V
Base Part Number PA75
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Apex Precision Power?
Published 2011
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Supplier Device Package TO-220-7 Staggered Leads
Number of Pins 7
Package / Case TO-220-7 (Formed Leads)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
