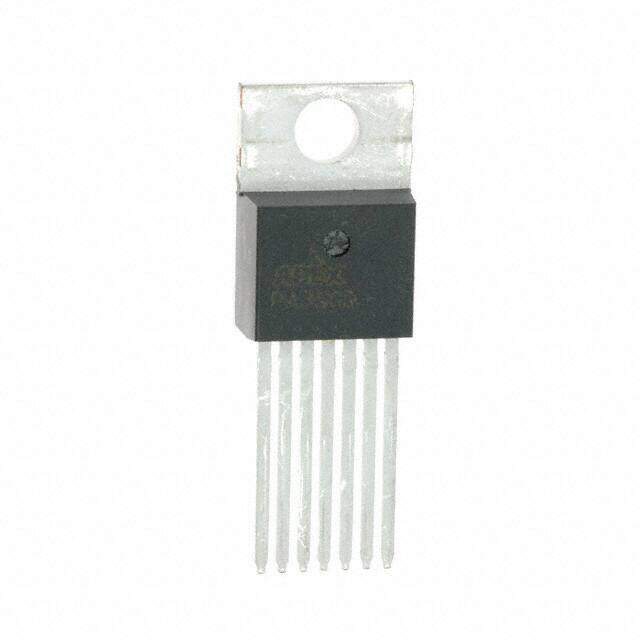

PA75CD
RoHS
RoHS compliant
RoHS compliantPackage TO-220-7
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant PA75 Tube Apex Precision Power? op amp amplifier circuit 10.54mm 100nA 15V 100dB
PDF
/
Buying Options
Total Price: USD $48.58
Unit Price: USD $48.57635
≥1 USD $48.57635
≥10 USD $39.85725
≥100 USD $38.6118
≥500 USD $37.36635
≥1000 USD $36.1209
Inventory: 1148
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-7
Number of Pins 7
Supplier Device Package TO-220-7
Technical
Operating Temperature -25°C~85°C
Packaging Tube
Published 2011
Series Apex Precision Power?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Base Part Number PA75
Operating Supply Voltage 30V
Number of Circuits 2
Operating Supply Current 8mA
Current - Supply 8mA
Slew Rate 1.4V/μs
Amplifier Type Power
Current - Input Bias 100nA
Voltage - Supply, Single/Dual (±) 5V~40V ±2.5V~20V
Output Current per Channel 1.5A
Input Offset Voltage (Vos) 1mV
Gain Bandwidth Product 1.4MHz
Voltage Gain 100dB
Voltage - Input Offset 1mV
Current - Output / Channel 1.5A
Dual Supply Voltage 15V
Dimensions
Height 14.98mm
Length 10.54mm
Width 4.83mm
Compliance
RoHS Status RoHS Compliant
