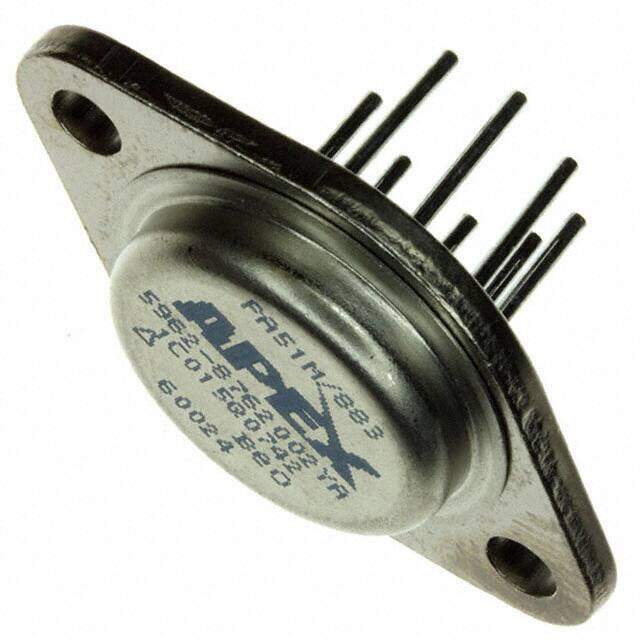

PA51M/883
RoHS
/
Package TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant O-MBFM-P8 PA51 Tin/Lead (Sn/Pb) op amp buffer circuit 0.04muA -40V 1000kHz 1MHz
PDF
/
Buying Options
Total Price: USD $560.03
Unit Price: USD $560.02809
≥1 USD $560.02809
≥10 USD $528.328386
≥100 USD $498.423002
≥500 USD $470.210379
≥1000 USD $443.594705
Inventory: 4791
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Common-mode Reject Ratio-Min 70 dB
Voltage Gain-Min 50000
Power YES
Neg Supply Voltage-Max (Vsup) -40V
Screening Level 38535Q/M;38534H;883B
Bias Current-Max (IIB) @25C 0.04μA
Current - Output / Channel 10A
Voltage - Input Offset 5mV
Supply Voltage Limit-Max 40V
Frequency Compensation YES
Low-Offset NO
Average Bias Current-Max (IIB) 0.04μA
Unity Gain BW-Nom 1000 kHz
Neg Supply Voltage-Nom (Vsup) -28V
Gain Bandwidth Product 1MHz
Voltage - Supply, Single/Dual (±) 20V~72V ±10V~36V
Current - Input Bias 15nA
Common Mode Rejection Ratio 70 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 2.6V/μs
Current - Supply 2.6mA
Number of Circuits 1
Power Supplies +-28V
Qualification Status Not Qualified
JESD-30 Code O-MBFM-P8
Pin Count 8
Base Part Number PA51
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 28V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology HYBRID
Subcategory Operational Amplifier
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series Apex Precision Power?
Published 2015
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Surface Mount NO
Package / Case TO-3-8
Mounting Type Through Hole
Supply Chain
Factory Lead Time 8 Weeks
