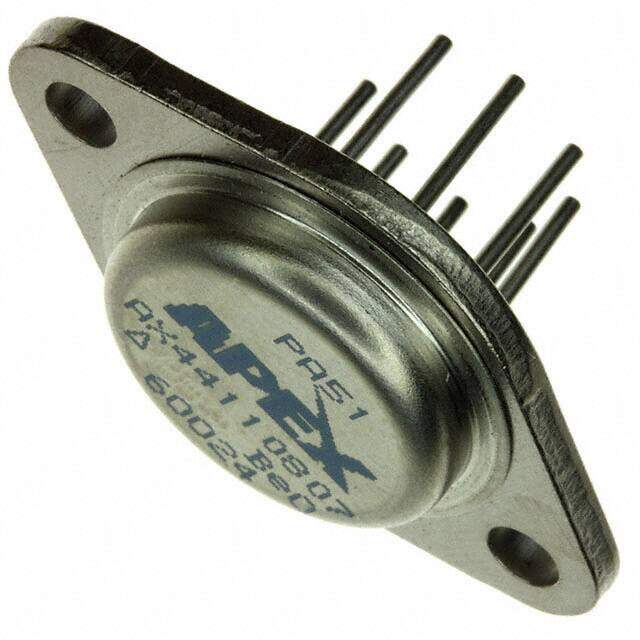

PA51
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant O-MBFM-P8 PA51 NICKEL (NI) op amp buffer circuit 0.04muA 5mV 1000kHz 1MHz
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.76095
≥1 USD $0.76095
≥10 USD $0.62415
≥100 USD $0.60515
≥500 USD $0.5852
≥1000 USD $0.5662
Inventory: 867
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Common-mode Reject Ratio-Min 70 dB
Voltage Gain-Min 50000
Power YES
Neg Supply Voltage-Max (Vsup) -40V
Bias Current-Max (IIB) @25C 0.04μA
Supply Voltage Limit-Max 40V
Frequency Compensation YES
Low-Offset NO
Average Bias Current-Max (IIB) 0.04μA
Unity Gain BW-Nom 1000 kHz
Neg Supply Voltage-Nom (Vsup) -28V
Gain Bandwidth Product 1MHz
Input Offset Voltage (Vos) 5mV
Output Current per Channel 10A
Voltage - Supply, Single/Dual (±) 20V~72V ±10V~36V
Current - Input Bias 15nA
Common Mode Rejection Ratio 110 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 2.6V/μs
Operating Supply Current 2.6mA
Number of Circuits 1
Power Supplies +-28V
Qualification Status Not Qualified
JESD-30 Code O-MBFM-P8
Pin Count 2
Base Part Number PA51
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 28V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology HYBRID
Subcategory Operational Amplifier
Terminal Finish NICKEL (NI)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Apex Precision Power?
Published 2012
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Package / Case TO-3-8
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
