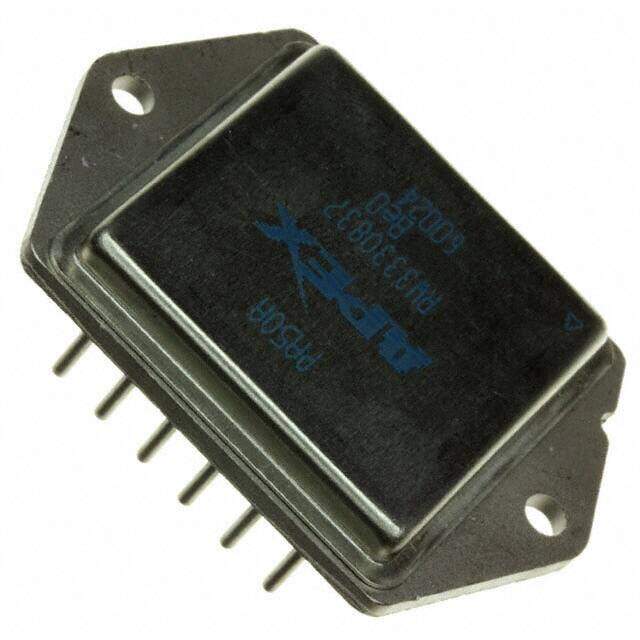

PA50A
RoHS
RoHS compliant
RoHS compliantPackage 12-DIP Module
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 PA50 Nickel (Ni) op amp amplifier circuit 5.08mm 36mA 2mV 3000kHz
PDF
/
Buying Options
Total Price: USD $0.16
Unit Price: USD $0.155958
≥1 USD $0.155958
≥10 USD $0.147123
≥100 USD $0.138795
≥500 USD $0.130942
≥1000 USD $0.123528
Inventory: 1441
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 12-DIP Module
Technical
Operating Temperature -25°C~85°C
Packaging Tray
Published 2011
Series Apex Precision Power?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Terminal Finish Nickel (Ni)
Subcategory Operational Amplifier
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 15V
Terminal Pitch 5.08mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PA50
Pin Count 12
Qualification Status Not Qualified
Output Type Rail-to-Rail
Power Supplies +-3/+-50V
Number of Circuits 1
Operating Supply Current 30mA
Supply Current-Max 36mA
Slew Rate 50V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 100 dB
Current - Input Bias 10pA
Voltage - Supply, Single/Dual (±) 6V~100V ±3V~50V
Output Current per Channel 100A
Input Offset Voltage (Vos) 2mV
Gain Bandwidth Product 3MHz
Neg Supply Voltage-Nom (Vsup) -15V
Unity Gain BW-Nom 3000 kHz
Average Bias Current-Max (IIB) 0.00005μA
Low-Offset NO
Frequency Compensation YES
Supply Voltage Limit-Max 50V
Low-Bias YES
Micropower NO
Bias Current-Max (IIB) @25C 0.00005μA
Programmable Power NO
Neg Supply Voltage-Max (Vsup) -50V
Wideband NO
Power YES
Compliance
RoHS Status RoHS Compliant
