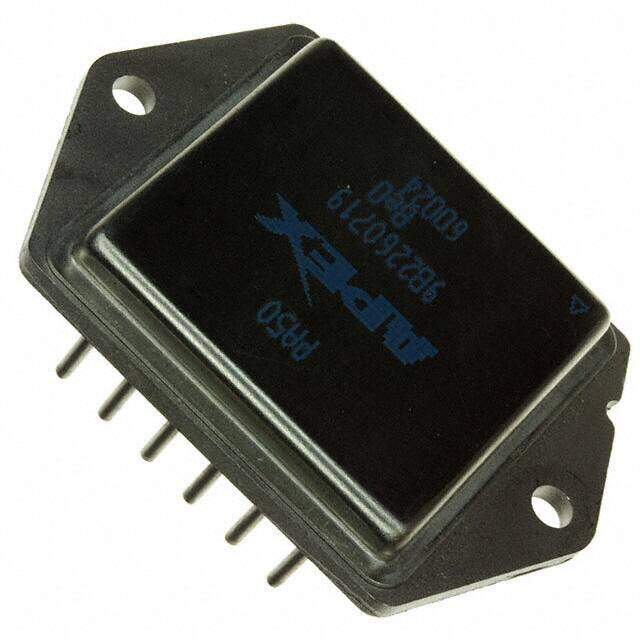

PA50
RoHS
RoHS compliant
RoHS compliantPackage 12-DIP Module
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 PA50 Nickel (Ni) op amp buffer circuit 5.08mm 36mA 5mV 3000kHz
PDF
/
Buying Options
Total Price: USD $0.15
Unit Price: USD $0.145251
≥1 USD $0.145251
≥10 USD $0.137029
≥100 USD $0.129273
≥500 USD $0.121953
≥1000 USD $0.115048
Inventory: 1139
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Power YES
Wideband NO
Neg Supply Voltage-Max (Vsup) -50V
Programmable Power NO
Bias Current-Max (IIB) @25C 0.00005μA
Micropower NO
Low-Bias YES
Supply Voltage Limit-Max 50V
Frequency Compensation YES
Low-Offset NO
Average Bias Current-Max (IIB) 0.00005μA
Unity Gain BW-Nom 3000 kHz
Neg Supply Voltage-Nom (Vsup) -15V
Gain Bandwidth Product 3MHz
Input Offset Voltage (Vos) 5mV
Output Current per Channel 100A
Voltage - Supply, Single/Dual (±) 6V~100V ±3V~50V
Current - Input Bias 10pA
Common Mode Rejection Ratio 100 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 50V/μs
Supply Current-Max 36mA
Operating Supply Current 30mA
Number of Circuits 1
Power Supplies +-3/+-50V
Output Type Rail-to-Rail
Qualification Status Not Qualified
Pin Count 12
Base Part Number PA50
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 5.08mm
Supply Voltage 15V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Subcategory Operational Amplifier
Terminal Finish Nickel (Ni)
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Apex Precision Power?
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Package / Case 12-DIP Module
Mounting Type Through Hole
Mount Through Hole
