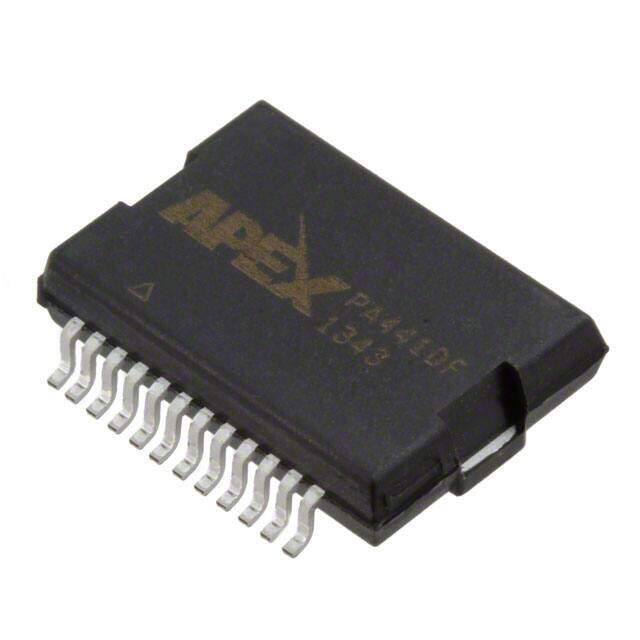

PA441DF
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant R-PDSO-G24 Tube Active op amp buffer circuit 3.3mm 0.0002muA 5mV 10000kHz
PDF
/
Buying Options
Total Price: USD $15.57
Unit Price: USD $15.56689
≥1 USD $15.56689
≥10 USD $14.685749
≥100 USD $13.854478
≥500 USD $13.070265
≥1000 USD $12.330435
Inventory: 1180
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 3.3mm
Technical
Average Bias Current-Max (IIB) 0.0002μA
Unity Gain BW-Nom 10000 kHz
Neg Supply Voltage-Nom (Vsup) -150V
Gain Bandwidth Product 10MHz
Input Offset Voltage (Vos) 5mV
Output Current per Channel 120mA
Voltage - Supply, Single/Dual (±) ±10V~175V
Current - Input Bias 2pA
Common Mode Rejection Ratio 115 dB
Amplifier Type General Purpose
Slew Rate 32V/μs
Operating Supply Current 2.2mA
Number of Circuits 1
JESD-30 Code R-PDSO-G24
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 150V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology MOS
Subcategory Operational Amplifier
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2015
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Package / Case 24-SMD
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
