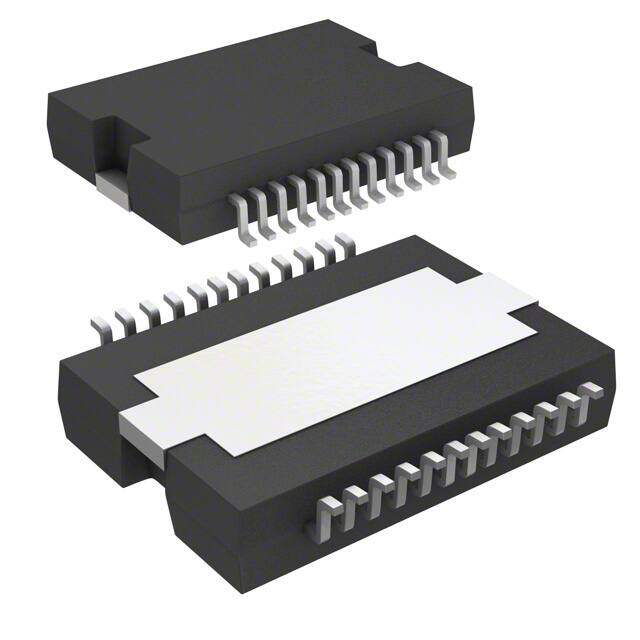

PA343DF
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant X-PDSO-G24 PA34* Tin (Sn) op amp amplifier circuit 5mA 12mV 10000kHz 10MHz
PDF
/
Buying Options
Total Price: USD $46.08
Unit Price: USD $46.08279
≥1 USD $46.08279
≥200 USD $17.834434
≥500 USD $17.206867
≥1000 USD $16.897023
Inventory: 1206
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 24-SMD
Technical
Operating Temperature -25°C~85°C
Packaging Tube
Series Apex Precision Power?
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 24
ECCN Code EAR99
Terminal Finish Tin (Sn)
Subcategory Operational Amplifier
Technology MOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 2
Supply Voltage 150V
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PA34*
Pin Count 24
JESD-30 Code X-PDSO-G24
Qualification Status Not Qualified
Number of Circuits 1
Operating Supply Current 2.2mA
Supply Current-Max 5mA
Slew Rate 32V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 115 dB
Current - Input Bias 50pA
Voltage - Supply, Single/Dual (±) 20V~350V ±10V~175V
Output Current per Channel 120mA
Input Offset Voltage (Vos) 12mV
Gain Bandwidth Product 10MHz
Neg Supply Voltage-Nom (Vsup) -150V
Unity Gain BW-Nom 10000 kHz
Average Bias Current-Max (IIB) 0.0002μA
Low-Offset NO
Frequency Compensation NO
Low-Bias YES
Micropower NO
Bias Current-Max (IIB) @25C 0.0002μA
Programmable Power NO
Wideband NO
Power YES
Compliance
RoHS Status RoHS Compliant
Alternative Model
