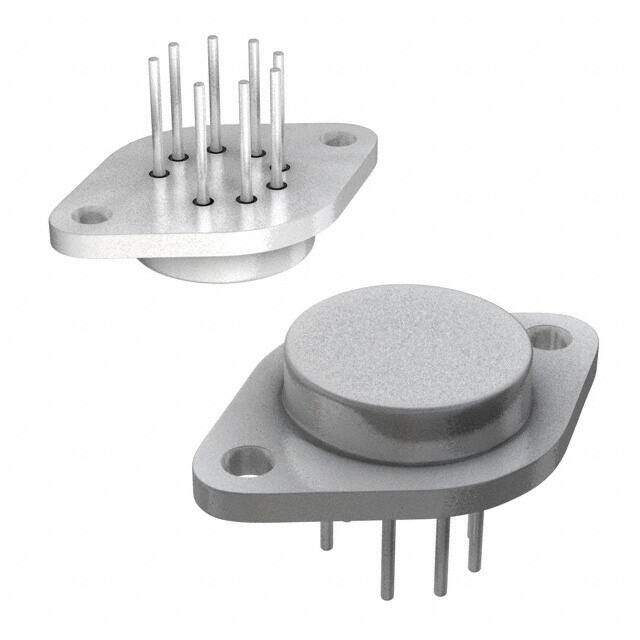

PA341CE
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant O-MBCY-W8 PA34* Tray op amp buffer circuit 0.00005muA 12mV 10000kHz 10MHz
PDF
/
Buying Options
Total Price: USD $46.51
Unit Price: USD $46.508635
≥1 USD $46.508635
≥10 USD $43.876073
≥100 USD $41.392519
≥500 USD $39.049549
≥1000 USD $36.839198
Inventory: 1131
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-3-8
Technical
Operating Temperature -25°C~85°C
Packaging Tray
Published 2012
Series Apex Precision Power?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Subcategory Operational Amplifier
Technology MOS
Terminal Position BOTTOM
Terminal Form WIRE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 150V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PA34*
Pin Count 2
JESD-30 Code O-MBCY-W8
Qualification Status Not Qualified
Number of Circuits 1
Operating Supply Current 2.2mA
Slew Rate 32V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 115 dB
Current - Input Bias 5pA
Voltage - Supply, Single/Dual (±) 20V~350V ±10V~175V
Output Current per Channel 120mA
Input Offset Voltage (Vos) 12mV
Gain Bandwidth Product 10MHz
Neg Supply Voltage-Nom (Vsup) -150V
Unity Gain BW-Nom 10000 kHz
Average Bias Current-Max (IIB) 0.00005μA
Low-Offset NO
Frequency Compensation NO
Low-Bias YES
Micropower NO
Programmable Power NO
Power YES
Compliance
RoHS Status RoHS Compliant
