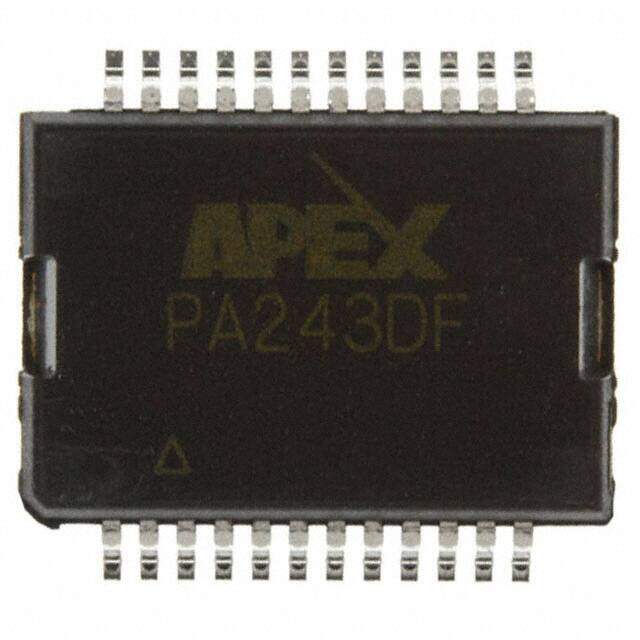

PA243DF
RoHS
/
Package 24-PowerSOP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 PA243 Tube op amp buffer circuit 15.9mm 50pA 25mV 3000kHz
PDF
/
Inventory: 8649
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 15.9mm
Height Seated (Max) 3.6mm
Technical
Neg Supply Voltage-Max (Vsup) -175V
Supply Voltage Limit-Max 175V
Unity Gain BW-Nom 3000 kHz
Neg Supply Voltage-Nom (Vsup) -150V
Gain Bandwidth Product 3MHz
Input Offset Voltage (Vos) 25mV
Output Current per Channel 120mA
Voltage - Supply, Single/Dual (±) 100V~350V ±50V~175V
Current - Input Bias 50pA
Common Mode Rejection Ratio 94 dB
Amplifier Type Power
Slew Rate 30V/μs
Operating Supply Current 2.2mA
Number of Circuits 2
Qualification Status Not Qualified
Pin Count 24
Base Part Number PA243
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1mm
Supply Voltage 150V
Number of Functions 2
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology MOS
Subcategory Operational Amplifier
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Series Apex Precision Power?
Published 2006
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Number of Pins 24
Package / Case 24-PowerSOP
Mounting Type Surface Mount
Mount Surface Mount
