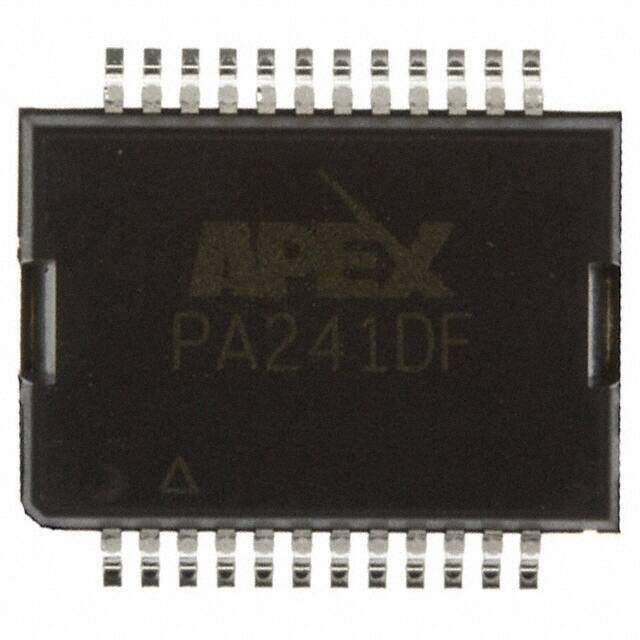

PA241DF
RoHS
/
Package 24-PowerSOP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 PA241 TIN BISMUTH op amp buffer circuit 3.6mm 0.0002muA 25mV 3000kHz
PDF
/
Inventory: 4682
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 3.6mm
Technical
Voltage Gain-Min 32000
Power YES
Programmable Power NO
Micropower NO
Low-Bias YES
Frequency Compensation NO
Low-Offset NO
Average Bias Current-Max (IIB) 0.0002μA
Unity Gain BW-Nom 3000 kHz
Neg Supply Voltage-Nom (Vsup) -150V
Gain Bandwidth Product 3MHz
Input Offset Voltage (Vos) 25mV
Output Current per Channel 120mA
Voltage - Supply, Single/Dual (±) 100V~350V ±50V~175V
Current - Input Bias 50pA
Common Mode Rejection Ratio 94 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 30V/μs
Operating Supply Current 2.2mA
Number of Circuits 1
Qualification Status Not Qualified
Pin Count 24
Base Part Number PA241
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 150V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology MOS
Subcategory Operational Amplifier
Terminal Finish TIN BISMUTH
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e6
Series Apex Precision Power?
Published 2007
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Number of Pins 24
Package / Case 24-PowerSOP
Mounting Type Surface Mount
Mount Surface Mount
