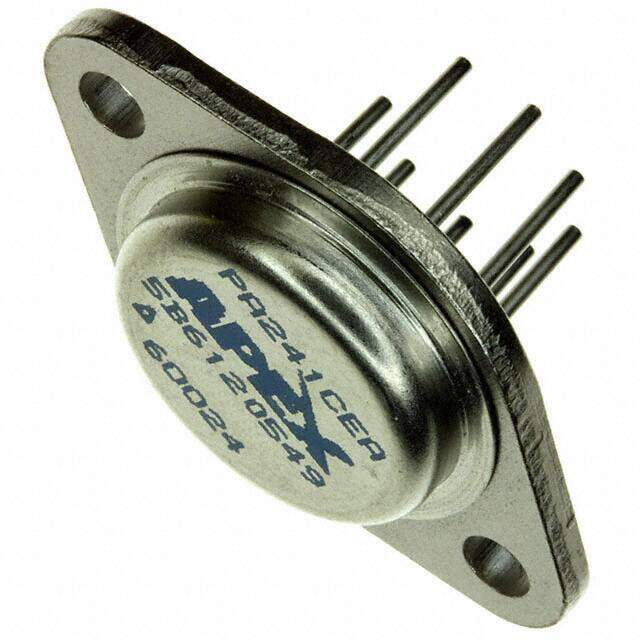

PA241CEA
RoHS
/
Package TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant O-MBFM-P8 PA241 NICKEL op amp amplifier circuit 0.00005muA 15mV 3000kHz 3MHz
PDF
/
Inventory: 4580
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Voltage Gain-Min 32000
Power YES
Programmable Power NO
Micropower NO
Low-Bias YES
Frequency Compensation NO
Low-Offset NO
Average Bias Current-Max (IIB) 0.00005μA
Unity Gain BW-Nom 3000 kHz
Neg Supply Voltage-Nom (Vsup) -150V
Gain Bandwidth Product 3MHz
Input Offset Voltage (Vos) 15mV
Output Current per Channel 120mA
Voltage - Supply, Single/Dual (±) 100V~350V ±50V~175V
Current - Input Bias 5pA
Common Mode Rejection Ratio 94 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 30V/μs
Operating Supply Current 2.2mA
Number of Circuits 1
Qualification Status Not Qualified
JESD-30 Code O-MBFM-P8
Pin Count 2
Base Part Number PA241
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 150V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology MOS
Subcategory Operational Amplifier
Terminal Finish NICKEL
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series Apex Precision Power?
Published 2013
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Package / Case TO-3-8
Mounting Type Through Hole
Mount Through Hole
