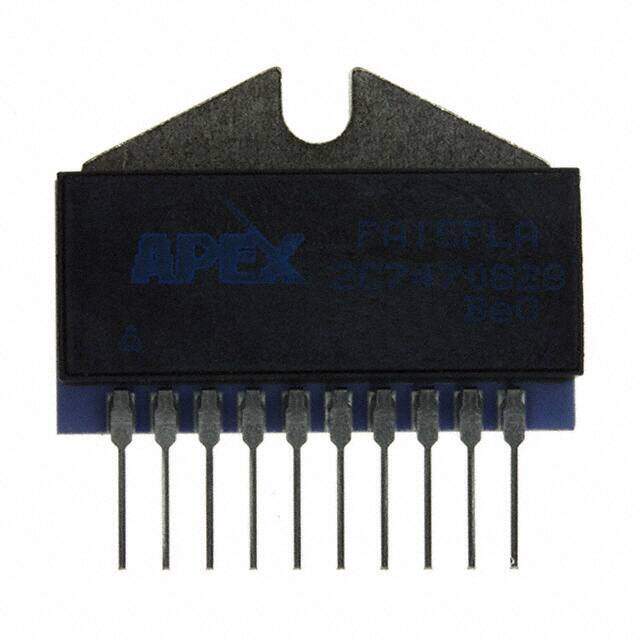

PA15FLA image
Favorite
PA15FLA image
Favorite
RoHS
RoHS RoHS compliant
Package 10-SIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description RoHS Compliant PA15 Tube Apex Precision Power? op amp buffer circuit 30.99mm 200pA 150V 111dB
PDF
/
Buying Options
Total Price: USD $155.1
Unit Price: USD $155.103748
≥1 USD $155.103748
≥10 USD $146.32429
≥100 USD $138.041787
≥500 USD $130.228094
≥1000 USD $122.856702
Inventory: 1102
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 6.86mm
Length 30.99mm
Height 22.35mm

Technical

Dual Supply Voltage 150V
Current - Output / Channel 200mA
Voltage - Input Offset 500μV
Voltage Gain 111dB
Gain Bandwidth Product 5.8MHz
Input Offset Voltage (Vos) 500μV
Output Current per Channel 200mA
Voltage - Supply, Single/Dual (±) 100V~450V ±50V~225V
Current - Input Bias 200pA
Amplifier Type Power
Slew Rate 30V/μs
Current - Supply 2mA
Operating Supply Current 2mA
Number of Circuits 1
Base Part Number PA15
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Apex Precision Power?
Published 2011
Packaging Tube
Operating Temperature -25°C~85°C

Physical

Supplier Device Package 10-SIP
Number of Pins 10
Package / Case 10-SIP
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 7 Weeks
