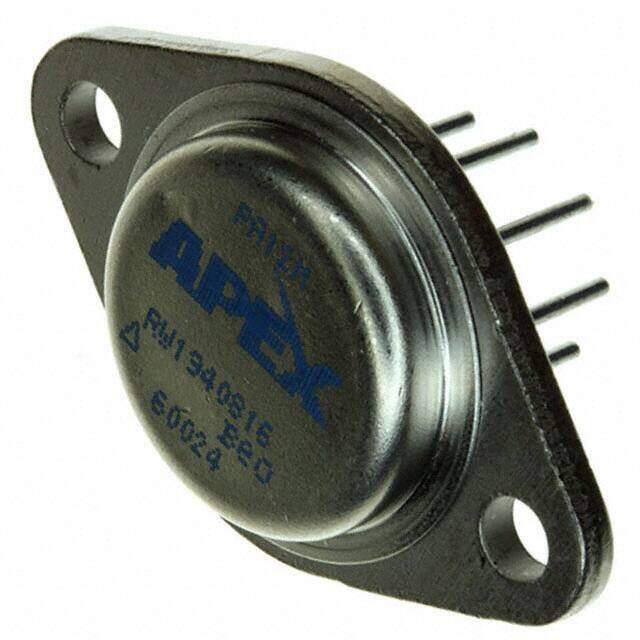

PA12M
RoHS
/
Package TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant O-MBFM-P8 PA12 Tin/Lead (Sn/Pb) op amp buffer circuit 0.03muA 2mV 4000kHz 4MHz
PDF
/
Buying Options
Total Price: USD $391.11
Unit Price: USD $391.109715
≥1 USD $391.109715
≥10 USD $368.97143
≥100 USD $348.086253
≥500 USD $328.38326
≥1000 USD $309.795526
Inventory: 5821
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-3-8
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2015
Series Apex Precision Power?
JESD-609 Code e0
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Subcategory Operational Amplifier
Technology HYBRID
Terminal Position BOTTOM
Terminal Form PIN/PEG
Number of Functions 1
Supply Voltage 40V
Base Part Number PA12
Pin Count 2
JESD-30 Code O-MBFM-P8
Qualification Status Not Qualified
Power Supplies +-40V
Number of Circuits 1
Operating Supply Current 25mA
Slew Rate 2.5V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 100 dB
Current - Input Bias 12nA
Voltage - Supply, Single/Dual (±) 20V~90V ±10V~45V
Output Current per Channel 10A
Input Offset Voltage (Vos) 2mV
Gain Bandwidth Product 4MHz
Neg Supply Voltage-Nom (Vsup) -40V
Unity Gain BW-Nom 4000 kHz
Average Bias Current-Max (IIB) 0.03μA
Low-Offset NO
Frequency Compensation YES
Supply Voltage Limit-Max 50V
Bias Current-Max (IIB) @25C 0.03μA
Screening Level MIL-STD-883 Class B (Modified)
Neg Supply Voltage-Max (Vsup) -50V
Power YES
Voltage Gain-Min 63000
Compliance
RoHS Status Non-RoHS Compliant
