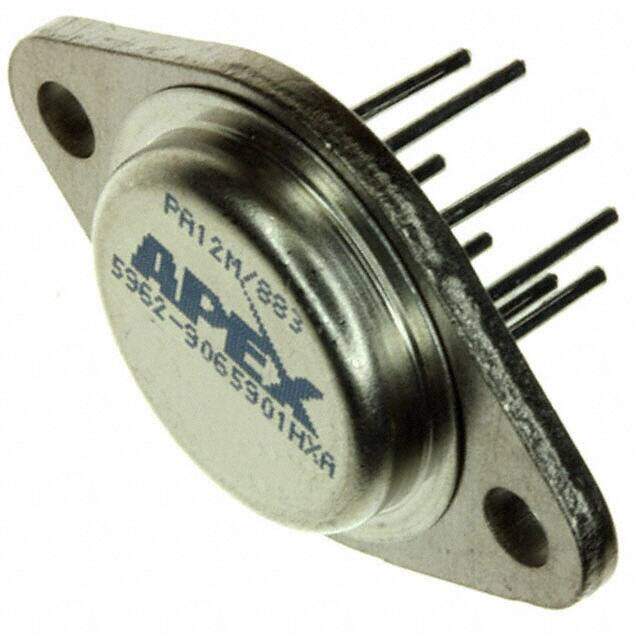

PA12M/883
RoHS
/
Package TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant O-MBFM-P8 PA12 Tin/Lead (Sn/Pb) op amp buffer circuit 0.03muA -50V 4000kHz 4MHz
PDF
/
Buying Options
Total Price: USD $72.6
Unit Price: USD $72.5971
≥1 USD $72.5971
≥10 USD $70.3285
≥100 USD $68.0599
≥500 USD $65.7913
≥1000 USD $58.9855
Inventory: 995
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case TO-3-8
Surface Mount NO
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2012
Series Apex Precision Power?
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Subcategory Operational Amplifier
Technology HYBRID
Terminal Position BOTTOM
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 40V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PA12
Pin Count 8
JESD-30 Code O-MBFM-P8
Qualification Status Not Qualified
Power Supplies +-40V
Number of Circuits 1
Current - Supply 25mA
Slew Rate 2.5V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 74 dB
Current - Input Bias 12nA
Voltage - Supply, Single/Dual (±) 20V~90V ±10V~45V
Gain Bandwidth Product 4MHz
Neg Supply Voltage-Nom (Vsup) -40V
Unity Gain BW-Nom 4000 kHz
Average Bias Current-Max (IIB) 0.03μA
Low-Offset NO
Frequency Compensation YES
Supply Voltage Limit-Max 50V
Voltage - Input Offset 2mV
Current - Output / Channel 10A
Bias Current-Max (IIB) @25C 0.03μA
Screening Level 38535Q/M;38534H;883B
Neg Supply Voltage-Max (Vsup) -50V
Power YES
Voltage Gain-Min 63000
Common-mode Reject Ratio-Min 74 dB
Compliance
RoHS Status Non-RoHS Compliant
