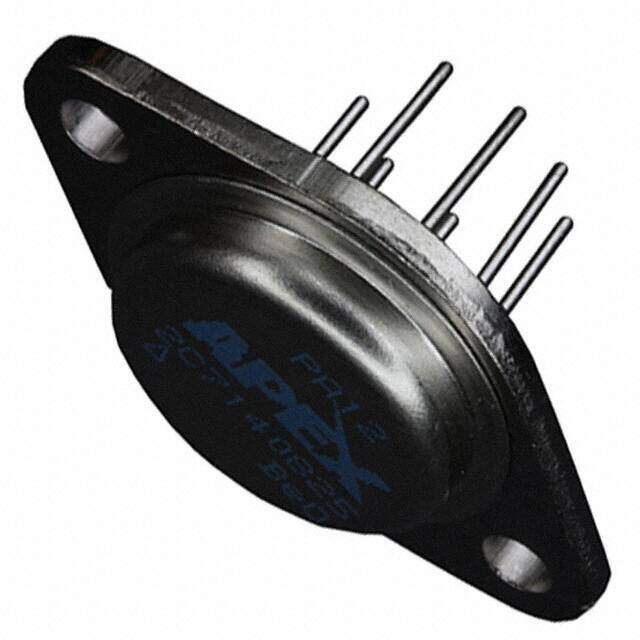

PA12
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant PA12 Tray Apex Precision Power? op amp amplifier circuit 38.9mm 12nA 40V 110dB
PDF
/
Buying Options
Total Price: USD $116.98
Unit Price: USD $116.97825
≥1 USD $116.97825
≥10 USD $113.0785
≥100 USD $101.38115
Inventory: 828
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-3-8
Number of Pins 8
Supplier Device Package TO-3-8
Technical
Operating Temperature -25°C~85°C
Packaging Tray
Series Apex Precision Power?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Base Part Number PA12
Number of Circuits 1
Operating Supply Current 25mA
Current - Supply 25mA
Slew Rate 2.5V/μs
Amplifier Type Power
Current - Input Bias 12nA
Voltage - Supply, Single/Dual (±) 20V~90V ±10V~45V
Output Current per Channel 10A
Input Offset Voltage (Vos) 2mV
Gain Bandwidth Product 4MHz
Voltage Gain 110dB
Voltage - Input Offset 2mV
Current - Output / Channel 10A
Dual Supply Voltage 40V
Dimensions
Height 6.4mm
Length 38.9mm
Width 25.4mm
Compliance
RoHS Status RoHS Compliant
Alternative Model
