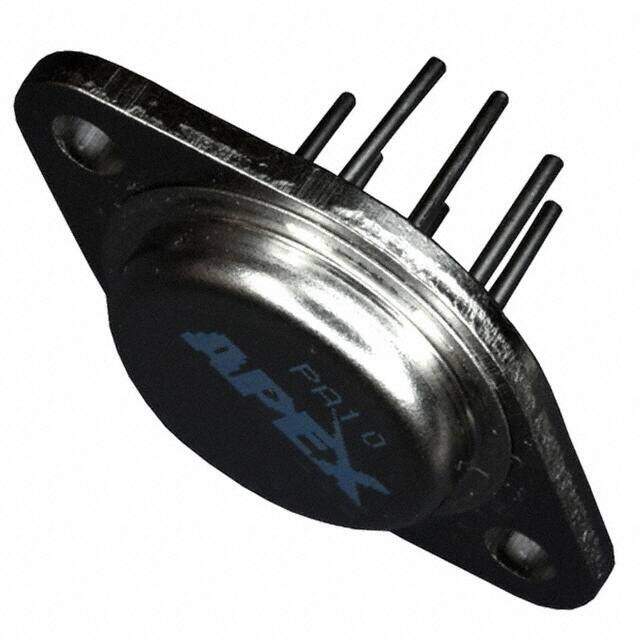

PA10
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 PA10 Nickel (Ni) op amp buffer circuit 38.9mm 30mA 40V 4000kHz
PDF
/
Buying Options
Total Price: USD $1.66
Unit Price: USD $1.65965
≥1 USD $1.65965
≥10 USD $1.36135
≥100 USD $1.31955
≥500 USD $1.2768
≥1000 USD $1.23405
Inventory: 1193
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-3-8
Number of Pins 8
Technical
Operating Temperature -25°C~85°C
Packaging Tube
Series Apex Precision Power?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Nickel (Ni)
Subcategory Operational Amplifier
Technology HYBRID
Terminal Position BOTTOM
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 40V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PA10
Pin Count 2
Qualification Status Not Qualified
Number of Circuits 1
Operating Supply Current 15mA
Supply Current-Max 30mA
Slew Rate 3V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 100 dB
Current - Input Bias 12nA
Voltage - Supply, Single/Dual (±) 20V~90V ±10V~45V
Output Current per Channel 5A
Input Offset Voltage (Vos) 2mV
Gain Bandwidth Product 4MHz
Neg Supply Voltage-Nom (Vsup) -40V
Unity Gain BW-Nom 4000 kHz
Voltage Gain 110dB
Average Bias Current-Max (IIB) 0.03μA
Low-Offset NO
Frequency Compensation YES
Supply Voltage Limit-Max 50V
Bias Current-Max (IIB) @25C 0.03μA
Dual Supply Voltage 40V
Neg Supply Voltage-Max (Vsup) -50V
Power YES
Common-mode Reject Ratio-Min 74 dB
Dimensions
Height 6.4mm
Length 38.9mm
Width 25.4mm
Compliance
RoHS Status RoHS Compliant
