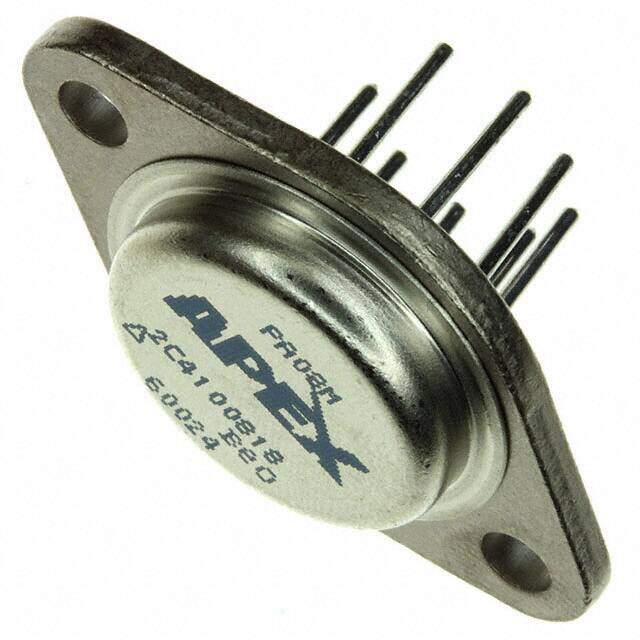

PA08M
RoHS
/
Package TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant O-MBFM-P8 PA08 Tin/Lead (Sn/Pb) op amp buffer circuit 0.00005muA 500muV 5000kHz 5MHz
PDF
/
Buying Options
Total Price: USD $38.71
Unit Price: USD $38.70965
≥1 USD $38.70965
≥10 USD $31.76135
≥100 USD $30.76955
≥500 USD $29.7768
≥1000 USD $28.78405
Inventory: 1150
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-3-8
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2013
Series Apex Precision Power?
JESD-609 Code e0
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Subcategory Operational Amplifier
Technology BIPOLAR
Terminal Position BOTTOM
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 100V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PA08
Pin Count 2
JESD-30 Code O-MBFM-P8
Qualification Status Not Qualified
Number of Circuits 1
Operating Supply Current 6mA
Slew Rate 20V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 130 dB
Current - Input Bias 5pA
Voltage - Supply, Single/Dual (±) 30V~300V ±15V~150V
Output Current per Channel 150mA
Input Offset Voltage (Vos) 500μV
Gain Bandwidth Product 5MHz
Neg Supply Voltage-Nom (Vsup) -100V
Unity Gain BW-Nom 5000 kHz
Average Bias Current-Max (IIB) 0.00005μA
Low-Offset NO
Frequency Compensation YES
Low-Bias YES
Micropower NO
Bias Current-Max (IIB) @25C 0.00005μA
Programmable Power NO
Screening Level MIL-STD-883 Class B (Modified)
Wideband NO
Power YES
Voltage Gain-Min 63000
Compliance
RoHS Status Non-RoHS Compliant
