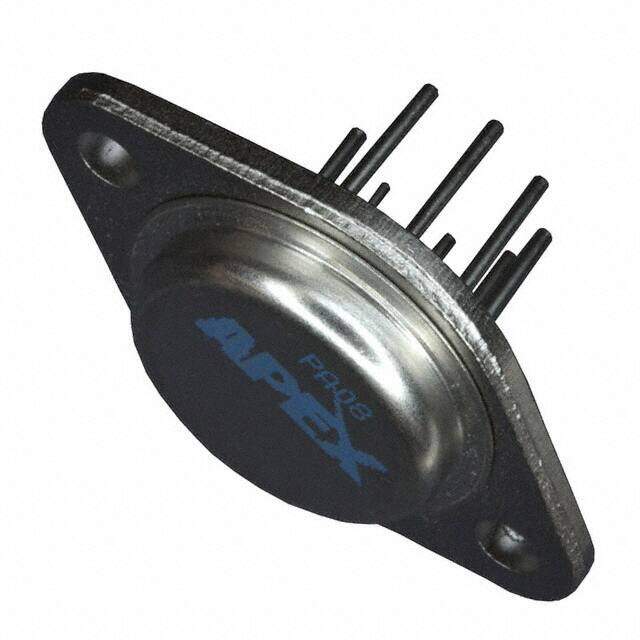

PA08 image
Favorite
PA08 image
Favorite
RoHS
RoHS RoHS compliant
Package TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description RoHS Compliant PA08 Tube Apex Precision Power? op amp amplifier circuit 38.9mm 5pA 100V 118dB
PDF
/
Buying Options
Total Price: USD $55.3
Unit Price: USD $55.29855
≥1 USD $55.29855
≥10 USD $45.3739
≥100 USD $43.95555
≥500 USD $42.53815
≥1000 USD $41.1198
Inventory: 510
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 25.4mm
Length 38.9mm
Height 6.4mm

Technical

Dual Supply Voltage 100V
Current - Output / Channel 150mA
Voltage - Input Offset 500μV
Voltage Gain 118dB
Gain Bandwidth Product 5MHz
Input Offset Voltage (Vos) 500μV
Output Current per Channel 150mA
Voltage - Supply, Single/Dual (±) 30V~300V ±15V~150V
Current - Input Bias 5pA
Amplifier Type Power
Slew Rate 30V/μs
Current - Supply 6mA
Operating Supply Current 6mA
Number of Circuits 1
Base Part Number PA08
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Apex Precision Power?
Published 2011
Packaging Tube
Operating Temperature -25°C~85°C

Physical

Supplier Device Package TO-3-8
Number of Pins 8
Package / Case TO-3-8
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 7 Weeks
