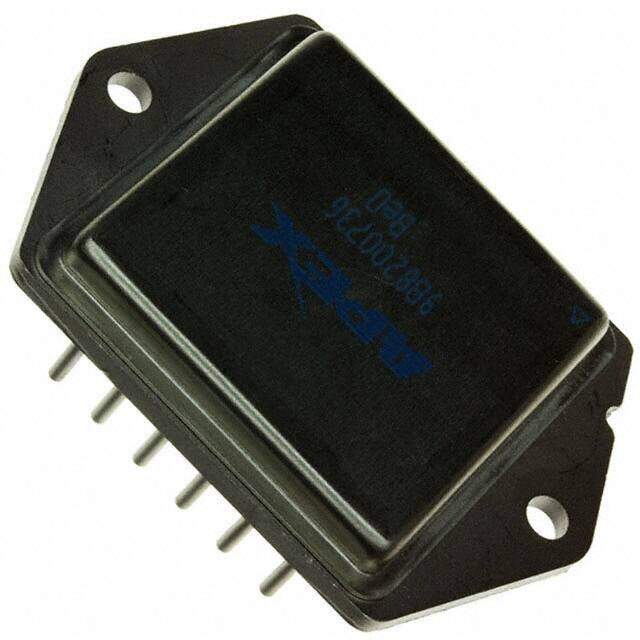

PA05A
RoHS
RoHS compliant
RoHS compliantPackage 12-DIP Module
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 PA05 Nickel (Ni) op amp amplifier circuit 5.08mm 0.00002muA 2mV 3000kHz
PDF
/
Buying Options
Total Price: USD $479.99
Unit Price: USD $479.985527
≥1 USD $479.985527
≥10 USD $452.816538
≥100 USD $427.185419
≥500 USD $403.005107
≥1000 USD $380.1935
Inventory: 1164
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 12-DIP Module
Technical
Operating Temperature -25°C~85°C
Packaging Tube
Published 2011
Series Apex Precision Power?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Terminal Finish Nickel (Ni)
Subcategory Operational Amplifiers
Technology MOS
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 45V
Terminal Pitch 5.08mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PA05
Pin Count 12
Qualification Status Not Qualified
Power Supplies +-45V
Number of Circuits 1
Operating Supply Current 90mA
Slew Rate 100V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 100 dB
Current - Input Bias 5pA
Voltage - Supply, Single/Dual (±) 30V~100V ±15V~50V
Output Current per Channel 30A
Input Offset Voltage (Vos) 2mV
Gain Bandwidth Product 3MHz
Neg Supply Voltage-Nom (Vsup) -45V
Unity Gain BW-Nom 3000 kHz
Average Bias Current-Max (IIB) 0.00002μA
Low-Offset NO
Frequency Compensation NO
Supply Voltage Limit-Max 50V
Low-Bias YES
Bias Current-Max (IIB) @25C 0.00002μA
Neg Supply Voltage-Max (Vsup) -50V
Power YES
Voltage Gain-Min 50000
Common-mode Reject Ratio-Min 90 dB
Compliance
RoHS Status RoHS Compliant
Alternative Model
