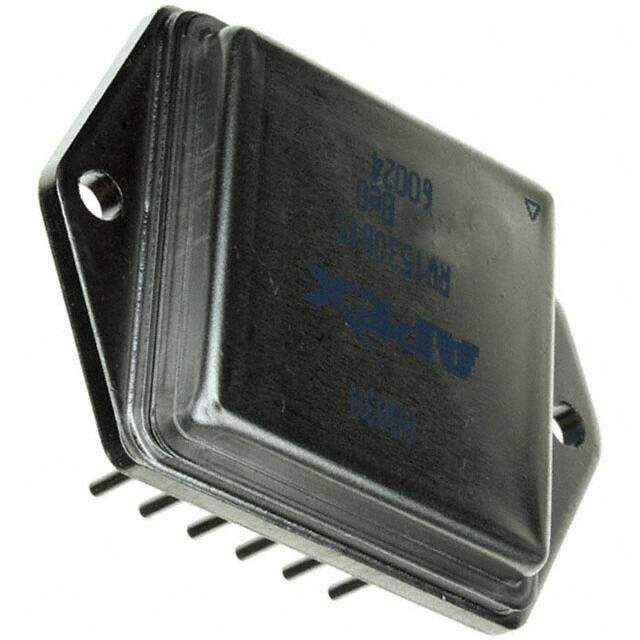

PA03A
RoHS
/
Package 12-DIP Module
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant EAR99 PA03 NICKEL op amp amplifier circuit 5.08mm 300mA 250muV 1000kHz
PDF
/
Buying Options
Total Price: USD $4558.08
Unit Price: USD $4558.08005
≥1 USD $4558.08005
Inventory: 1176
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 12-DIP Module
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2012
Series Apex Precision Power?
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Terminal Finish NICKEL
Subcategory Operational Amplifier
Technology BIPOLAR
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 50V
Terminal Pitch 5.08mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PA03
Pin Count 12
Qualification Status Not Qualified
Power Supplies +-50V
Number of Circuits 1
Operating Supply Current 125mA
Supply Current-Max 300mA
Slew Rate 8V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 108 dB
Current - Input Bias 3pA
Voltage - Supply, Single/Dual (±) 30V~150V ±15V~75V
Output Current per Channel 30A
Input Offset Voltage (Vos) 250μV
Gain Bandwidth Product 1MHz
Neg Supply Voltage-Nom (Vsup) -50V
Unity Gain BW-Nom 1000 kHz
Low-Offset NO
Frequency Compensation NO
Supply Voltage Limit-Max 75V
Low-Bias YES
Micropower NO
Programmable Power NO
Neg Supply Voltage-Max (Vsup) -75V
Wideband NO
Power YES
Voltage Gain-Min 40000
Common-mode Reject Ratio-Min 86 dB
