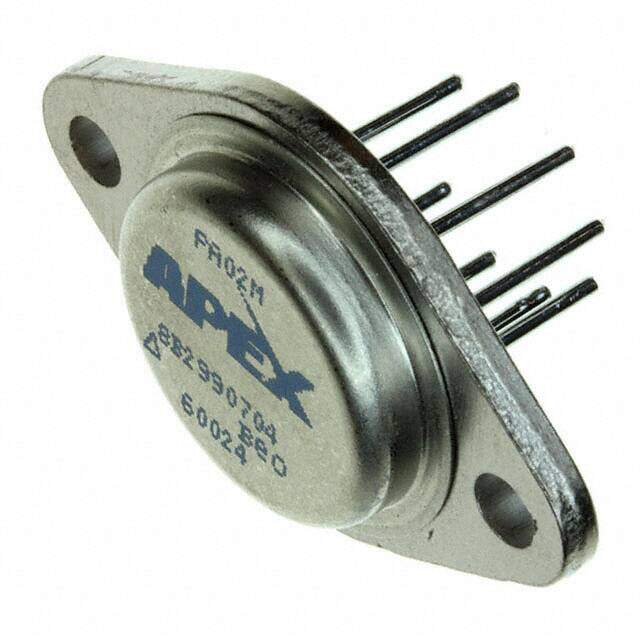

PA02M
RoHS
/
Package TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant O-MBFM-P8 PA02 TIN/LEAD (SN/PB) op amp amplifier circuit 60mA 5mV 4500kHz 4.5MHz
PDF
/
Buying Options
Total Price: USD $132.72
Unit Price: USD $132.7169
≥1 USD $132.7169
≥10 USD $128.29275
≥100 USD $115.02125
Inventory: 684
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-3-8
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2012
Series Apex Precision Power?
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish TIN/LEAD (SN/PB)
Subcategory Operational Amplifier
Technology HYBRID
Terminal Position BOTTOM
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 15V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PA02
Pin Count 2
JESD-30 Code O-MBFM-P8
Qualification Status Not Qualified
Number of Circuits 1
Operating Supply Current 27mA
Supply Current-Max 60mA
Slew Rate 20V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 100 dB
Current - Input Bias 50pA
Voltage - Supply, Single/Dual (±) 14V~38V ±7V~19V
Output Current per Channel 5A
Input Offset Voltage (Vos) 5mV
Gain Bandwidth Product 4.5MHz
Neg Supply Voltage-Nom (Vsup) -15V
Unity Gain BW-Nom 4500 kHz
Average Bias Current-Max (IIB) 0.0002μA
Low-Offset NO
Frequency Compensation YES
Low-Bias YES
Bias Current-Max (IIB) @25C 0.0002μA
Screening Level MIL-STD-883 Class B (Modified)
Power YES
Voltage Gain-Min 20000
Compliance
RoHS Status Non-RoHS Compliant
