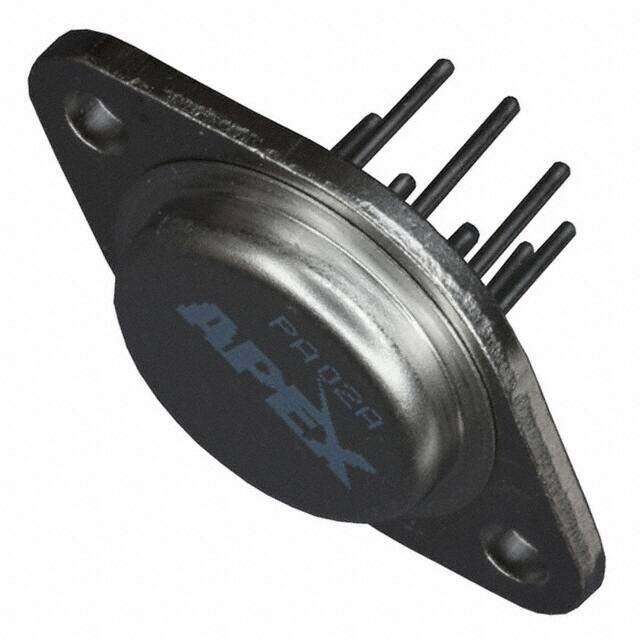

PA02A
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 PA02 Nickel (Ni) op amp amplifier circuit 38.9mm 37mA 15V 4500kHz
PDF
/
Buying Options
Total Price: USD $13.83
Unit Price: USD $13.82535
≥1 USD $13.82535
≥10 USD $11.34395
≥100 USD $10.9896
≥500 USD $10.6343
≥1000 USD $10.27995
Inventory: 56
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 25.4mm
Length 38.9mm
Height 6.4mm
Technical
Common-mode Reject Ratio-Min 70 dB
Power YES
Dual Supply Voltage 15V
Low-Bias YES
Frequency Compensation YES
Low-Offset NO
Voltage Gain 103dB
Unity Gain BW-Nom 4500 kHz
Neg Supply Voltage-Nom (Vsup) -15V
Gain Bandwidth Product 4.5MHz
Input Offset Voltage (Vos) 1mV
Output Current per Channel 5A
Voltage - Supply, Single/Dual (±) 14V~38V ±7V~19V
Current - Input Bias 25pA
Common Mode Rejection Ratio 100 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 20V/μs
Supply Current-Max 37mA
Operating Supply Current 27mA
Number of Circuits 1
Qualification Status Not Qualified
Pin Count 2
Base Part Number PA02
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 15V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology HYBRID
Subcategory Operational Amplifier
Terminal Finish Nickel (Ni)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Apex Precision Power?
Published 2011
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Number of Pins 8
Package / Case TO-3-8
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
