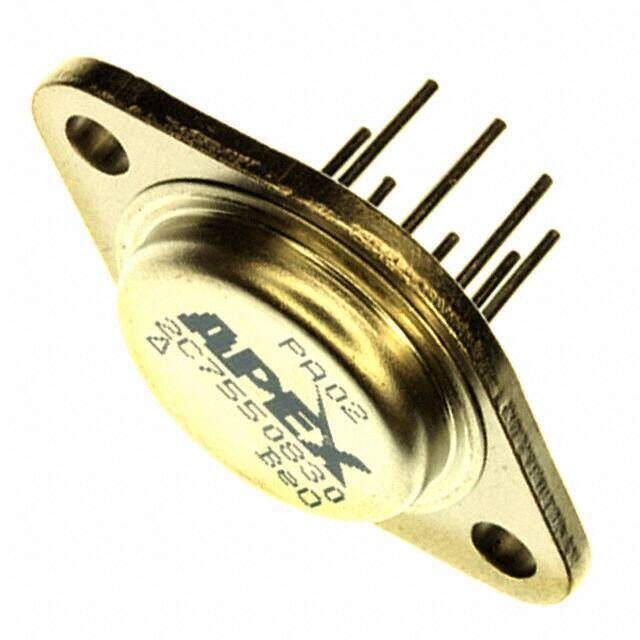

PA02
RoHS
/
Package TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant EAR99 PA02 NICKEL (NI) op amp buffer circuit 38.9mm 0.0002muA 15V 4500kHz
PDF
/
Buying Options
Total Price: USD $132.72
Unit Price: USD $132.7169
≥1 USD $132.7169
≥10 USD $128.29275
≥100 USD $115.02125
Inventory: 961
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 25.4mm
Length 38.9mm
Height 6.4mm
Technical
Common-mode Reject Ratio-Min 70 dB
Max Junction Temperature (Tj) 150°C
Power YES
Dual Supply Voltage 15V
Bias Current-Max (IIB) @25C 0.0002μA
Low-Bias YES
Frequency Compensation YES
Low-Offset NO
Average Bias Current-Max (IIB) 0.0002μA
Voltage Gain 103dB
Unity Gain BW-Nom 4500 kHz
Neg Supply Voltage-Nom (Vsup) -15V
Gain Bandwidth Product 4.5MHz
Bandwidth 350 kHz
Input Offset Voltage (Vos) 5mV
Output Current per Channel 5A
Voltage - Supply, Single/Dual (±) 14V~38V ±7V~19V
Current - Input Bias 50pA
Common Mode Rejection Ratio 100 dB
Amplifier Type Power
Architecture VOLTAGE-FEEDBACK
Slew Rate 20V/μs
Nominal Supply Current 27mA
Operating Supply Current 27mA
Number of Circuits 1
Qualification Status Not Qualified
Pin Count 2
Base Part Number PA02
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 15V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position BOTTOM
Technology HYBRID
Subcategory Operational Amplifier
Terminal Finish NICKEL (NI)
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Apex Precision Power?
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Number of Pins 8
Package / Case TO-3-8
Mounting Type Through Hole
Mount Through Hole
Alternative Model
