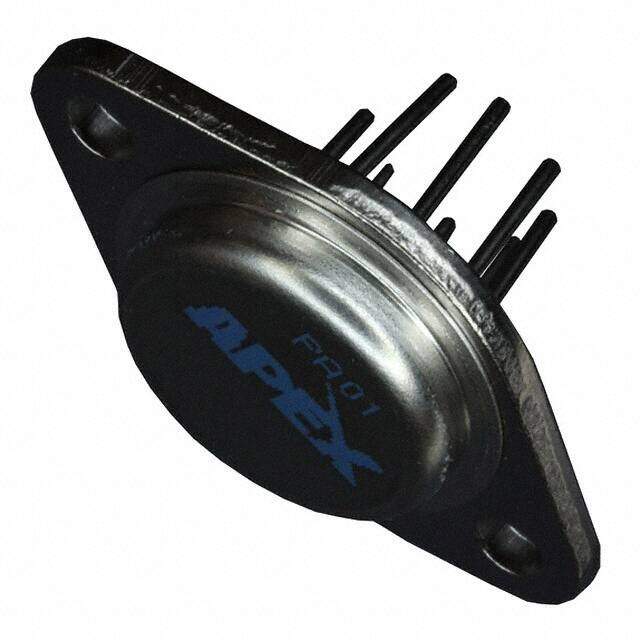

PA01
RoHS
RoHS compliant
RoHS compliantPackage TO-3-8
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 PA01 NICKEL op amp amplifier circuit 38.9mm 50mA 28V 1000kHz
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3832
≥1 USD $1.3832
≥10 USD $1.13525
≥100 USD $1.09915
≥500 USD $1.064
≥1000 USD $1.02885
Inventory: 882
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-3-8
Number of Pins 8
Technical
Operating Temperature -25°C~85°C
Packaging Tube
Series Apex Precision Power?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish NICKEL
Subcategory Operational Amplifier
Technology HYBRID
Terminal Position BOTTOM
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) 300
Number of Functions 1
Supply Voltage 28V
Time@Peak Reflow Temperature-Max (s) 10
Base Part Number PA01
Pin Count 2
Qualification Status Not Qualified
Number of Circuits 1
Operating Supply Current 20mA
Supply Current-Max 50mA
Slew Rate 2.6V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 110 dB
Current - Input Bias 15nA
Voltage - Supply, Single/Dual (±) 20V~56V ±10V~28V
Output Current per Channel 5A
Input Offset Voltage (Vos) 5mV
Gain Bandwidth Product 1MHz
Neg Supply Voltage-Nom (Vsup) -28V
Unity Gain BW-Nom 1000 kHz
Voltage Gain 113dB
Average Bias Current-Max (IIB) 0.05μA
Low-Offset NO
Frequency Compensation YES
Supply Voltage Limit-Max 30V
Bias Current-Max (IIB) @25C 0.05μA
Dual Supply Voltage 28V
Neg Supply Voltage-Max (Vsup) -30V
Power YES
Common-mode Reject Ratio-Min 70 dB
Dimensions
Height 6.4mm
Length 38.9mm
Width 25.4mm
Compliance
RoHS Status RoHS Compliant
