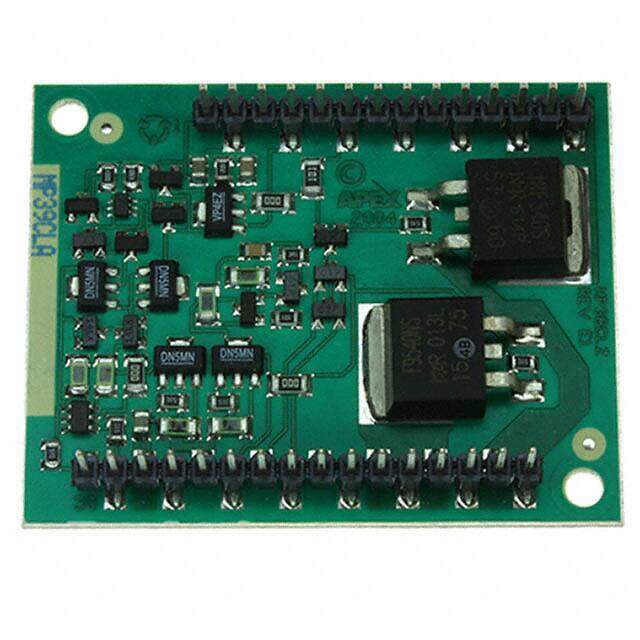

MP39CLA
RoHS
/
Package 30-DIP Module
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant R-XDMA-P30 MP*CL TIN NICKEL op amp buffer circuit 10pA 5mV 2000kHz 2MHz
PDF
/
Buying Options
Total Price: USD $123.73
Unit Price: USD $123.727691
≥1 USD $123.727691
≥10 USD $116.724242
≥100 USD $110.117204
≥500 USD $103.884163
≥1000 USD $98.003927
Inventory: 1273
Minimum: 1
-
+
Technical Details
Technical
Number of Circuits 1
Operating Supply Current 26mA
Slew Rate 10V/μs
Amplifier Type Power
Common Mode Rejection Ratio 98 dB
Current - Input Bias 10pA
Voltage - Supply, Single/Dual (±) 30V~100V ±15V~50V
Qualification Status Not Qualified
JESD-30 Code R-XDMA-P30
Pin Count 30
Base Part Number MP*CL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 40V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Subcategory Operational Amplifier
Terminal Finish TIN NICKEL
ECCN Code EAR99
Number of Terminations 30
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e2
Series Apex Precision Power?
Published 2012
Packaging Tube
Operating Temperature -40°C~85°C
Neg Supply Voltage-Max (Vsup) -50V
Supply Voltage Limit-Max 50V
Unity Gain BW-Nom 2000 kHz
Neg Supply Voltage-Nom (Vsup) -40V
Gain Bandwidth Product 2MHz
Input Offset Voltage (Vos) 5mV
Output Current per Channel 11A
Physical
Package / Case 30-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
Compliance
RoHS Status Non-RoHS Compliant
