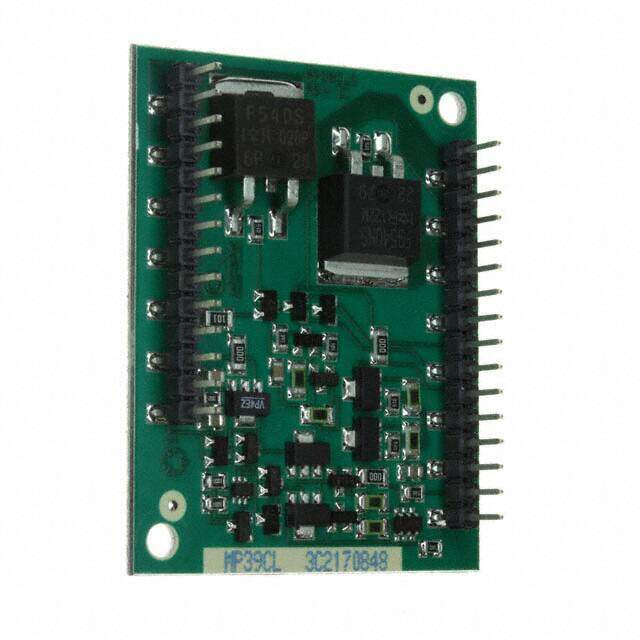

MP39CL
RoHS
/
Package 30-DIP Module
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant R-XDMA-P30 MP*CL TIN NICKEL op amp amplifier circuit 0.0002muA 5mV 2000kHz 2MHz
PDF
/
Buying Options
Total Price: USD $132.75
Unit Price: USD $132.749507
≥1 USD $132.749507
≥10 USD $125.235387
≥100 USD $118.146586
≥500 USD $111.459044
≥1000 USD $105.150044
Inventory: 1091
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 30-DIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series Apex Precision Power?
JESD-609 Code e2
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 30
ECCN Code EAR99
Terminal Finish TIN NICKEL
Subcategory Operational Amplifier
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 40V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number MP*CL
Pin Count 30
JESD-30 Code R-XDMA-P30
Qualification Status Not Qualified
Number of Circuits 1
Operating Supply Current 26mA
Slew Rate 10V/μs
Amplifier Type Power
Common Mode Rejection Ratio 98 dB
Current - Input Bias 10pA
Voltage - Supply, Single/Dual (±) 30V~100V ±15V~50V
Output Current per Channel 10A
Input Offset Voltage (Vos) 5mV
Gain Bandwidth Product 2MHz
Neg Supply Voltage-Nom (Vsup) -40V
Unity Gain BW-Nom 2000 kHz
Average Bias Current-Max (IIB) 0.0002μA
Supply Voltage Limit-Max 50V
Neg Supply Voltage-Max (Vsup) -50V
Compliance
RoHS Status Non-RoHS Compliant
