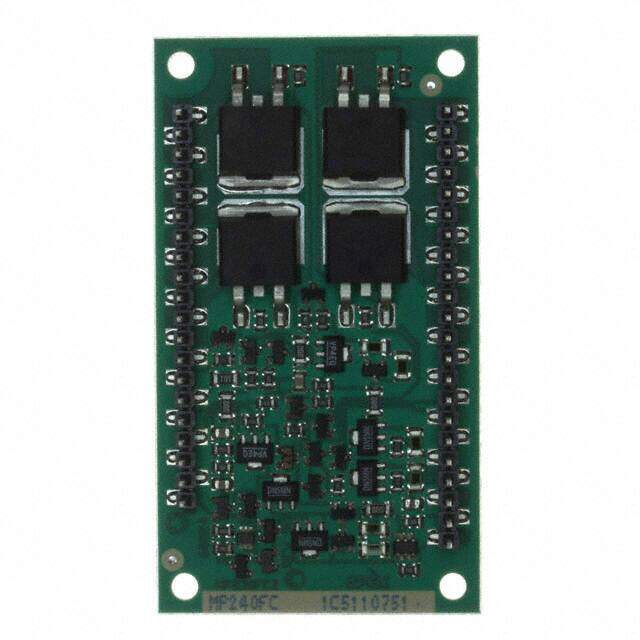

MP240FC
RoHS
/
Package 42-DIP Module
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant R-XDMA-P42 MP*FC Tube op amp amplifier circuit 100pA 1mV 1800kHz 1.8MHz
PDF
/
Inventory: 4637
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 42-DIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series Apex Precision Power?
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 42
ECCN Code EAR99
Subcategory Operational Amplifier
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Supply Voltage 75V
Reach Compliance Code unknown
Base Part Number MP*FC
Pin Count 42
JESD-30 Code R-XDMA-P42
Qualification Status Not Qualified
Number of Circuits 1
Operating Supply Current 16.5mA
Slew Rate 14V/μs
Amplifier Type Power
Common Mode Rejection Ratio 92 dB
Current - Input Bias 100pA
Voltage - Supply, Single/Dual (±) 30V~200V ±15V~100V
Output Current per Channel 20A
Input Offset Voltage (Vos) 1mV
Gain Bandwidth Product 1.8MHz
Neg Supply Voltage-Nom (Vsup) -75V
Unity Gain BW-Nom 1800 kHz
Compliance
RoHS Status Non-RoHS Compliant
