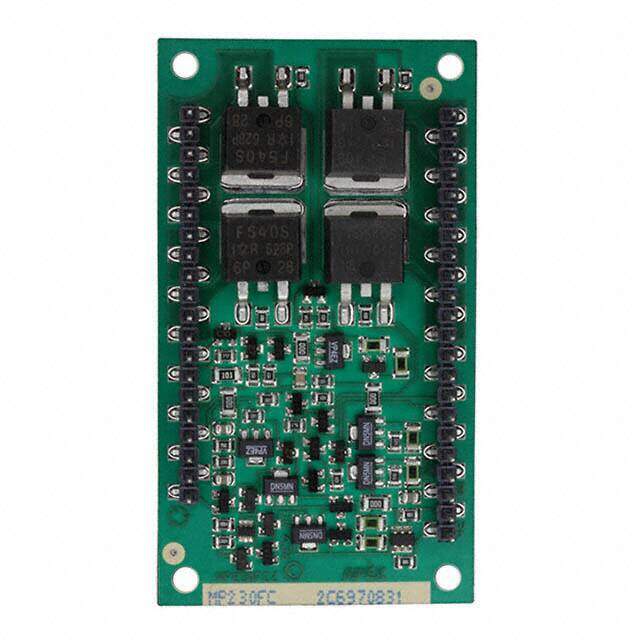

MP230FC
RoHS
/
Package 42-DIP Module
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
Non-RoHS Compliant R-XDMA-P42 MP*FC TIN op amp amplifier circuit 100pA 1mV 2000kHz 2MHz
PDF
/
Inventory: 7934
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Common Mode Rejection Ratio 92 dB
Current - Input Bias 100pA
Voltage - Supply, Single/Dual (±) 30V~100V ±15V~50V
Output Current per Channel 30A
Input Offset Voltage (Vos) 1mV
Gain Bandwidth Product 2MHz
Neg Supply Voltage-Nom (Vsup) -45V
Unity Gain BW-Nom 2000 kHz
Supply Voltage Limit-Max 50V
Neg Supply Voltage-Max (Vsup) -50V
Amplifier Type Power
Slew Rate 15V/μs
Operating Supply Current 27mA
Number of Circuits 1
Qualification Status Not Qualified
JESD-30 Code R-XDMA-P42
Pin Count 42
Base Part Number MP*FC
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Supply Voltage 45V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Terminal Finish TIN
ECCN Code EAR99
Number of Terminations 42
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Series Apex Precision Power?
Packaging Tube
Operating Temperature -40°C~85°C
Compliance
RoHS Status Non-RoHS Compliant
Physical
Package / Case 42-DIP Module
Mounting Type Through Hole
Mount Through Hole
