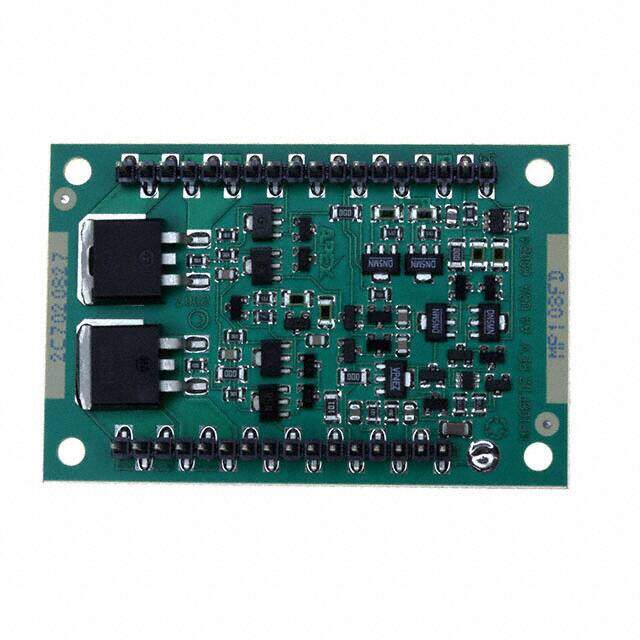

MP108FD
RoHS
RoHS compliant
RoHS compliantPackage 34-DIP Module
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 MP*FD Bulk op amp amplifier circuit 100pA 1mV 10000kHz 10MHz
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 34-DIP Module
Number of Pins 34
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series Apex Precision Power?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 34
ECCN Code EAR99
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Supply Voltage 75V
Base Part Number MP*FD
Pin Count 34
Qualification Status Not Qualified
Number of Circuits 1
Operating Supply Current 50mA
Slew Rate 170V/μs
Amplifier Type Power
Common Mode Rejection Ratio 92 dB
Current - Input Bias 100pA
Voltage - Supply, Single/Dual (±) 30V~200V ±15V~100V
Output Current per Channel 10A
Input Offset Voltage (Vos) 1mV
Gain Bandwidth Product 10MHz
Neg Supply Voltage-Nom (Vsup) -75V
Unity Gain BW-Nom 10000 kHz
Compliance
RoHS Status RoHS Compliant
