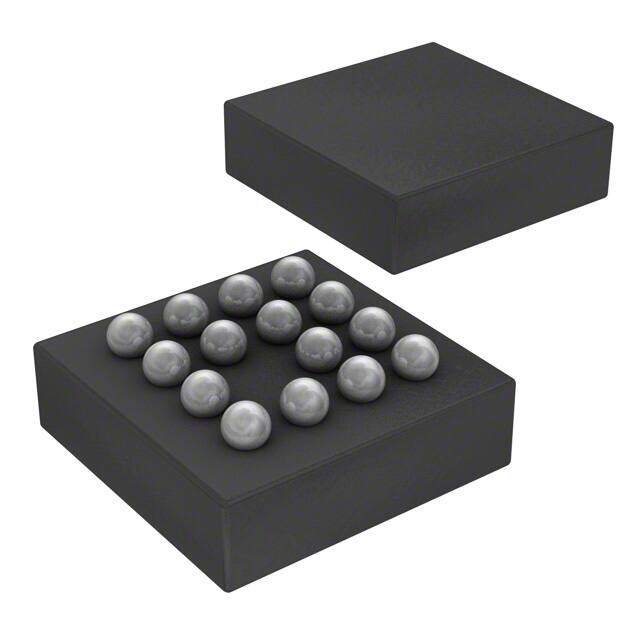

TPA6101A2ZQYRG1
RoHS
RoHS compliant
RoHS compliantPackage 15-VFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.33.00.01 TPA6101 Tape & Reel (TR) Depop Short-Circuit and Thermal Protection Shutdown audio amplifier 1.6V 2.5mm 50mW x 2 @ 16Ohm 750muA
PDF
/
Buying Options
Total Price: USD $3.4
Unit Price: USD $3.403277
≥1 USD $3.403277
≥10 USD $3.210641
≥100 USD $3.028907
≥500 USD $2.857463
≥1000 USD $2.69572
Inventory: 1240
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 15-VFBGA
Surface Mount YES
Number of Pins 15
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e1
Feature Depop, Short-Circuit and Thermal Protection, Shutdown
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 15
ECCN Code EAR99
Type Class AB
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
HTS Code 8542.33.00.01
Subcategory Audio/Video Amplifiers
Max Power Dissipation 2W
Technology CMOS
Voltage - Supply 1.6V~3.6V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Base Part Number TPA6101
Pin Count 15
Output Type Headphones, 2-Channel (Stereo)
Operating Supply Voltage 3V
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.6V
Number of Channels 2
Nominal Supply Current 750μA
Power Dissipation 2W
Output Power 50mW
Supply Type Single
Bandwidth 20 kHz
Voltage Gain 2dB
Power Supply Rejection Ratio (PSRR) 72dB
Gain 2 dB
Max Output Power 50mW
Max Output Power x Channels @ Load 50mW x 2 @ 16 Ω
Harmonic Distortion 0.1%
Dimensions
Height Seated (Max) 1mm
Length 2.5mm
Width 2.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
