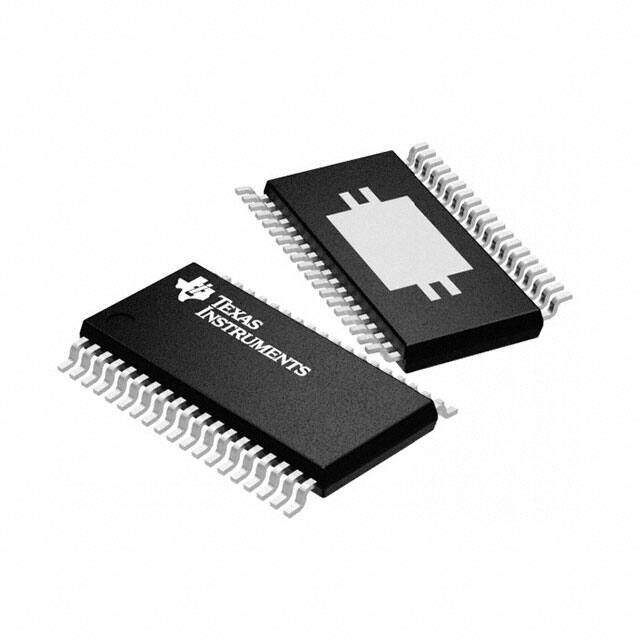

TAS5806MDDCPR
RoHS
RoHS compliant
RoHS compliantPackage 38-TFSOP (0.173, 4.40mm Width) Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
R-PDSO-G38 TAS5806 Tape & Reel (TR) Auto Level Control Input Multiplexer PWM Control audio amplifier 1.62V 9.7mm 27.5x 2 @ 80Ohm 27.5W
PDF
/
Buying Options
Total Price: USD $1.76
Unit Price: USD $1.76
≥1 USD $1.76
≥10 USD $1.584
≥100 USD $1.497056
≥500 USD $1.29756
≥1000 USD $1.231014
≥3000 USD $1.171491
Inventory: 1731
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 38-TFSOP (0.173, 4.40mm Width) Exposed Pad
Surface Mount YES
Technical
Operating Temperature -25°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e4
Feature Auto Level Control, Input Multiplexer, PWM Control
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 38
Type Class D
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Additional Feature PVDD POWER 4.5V MIN SNF 26.4V MAX REQUIRED TO DRIVE OUTPUT STAGE
Voltage - Supply 1.62V~3.63V
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 0.5mm
Base Part Number TAS5806
JESD-30 Code R-PDSO-G38
Output Type 2-Channel (Stereo)
Supply Voltage-Max (Vsup) 3.63V
Supply Voltage-Min (Vsup) 1.62V
Number of Channels 2
Output Power 27.5W
Max Output Power x Channels @ Load 27.5 x 2 @ 80 Ω
Dimensions
Height Seated (Max) 1.2mm
Length 9.7mm
Width 4.4mm
Compliance
RoHS Status ROHS3 Compliant
