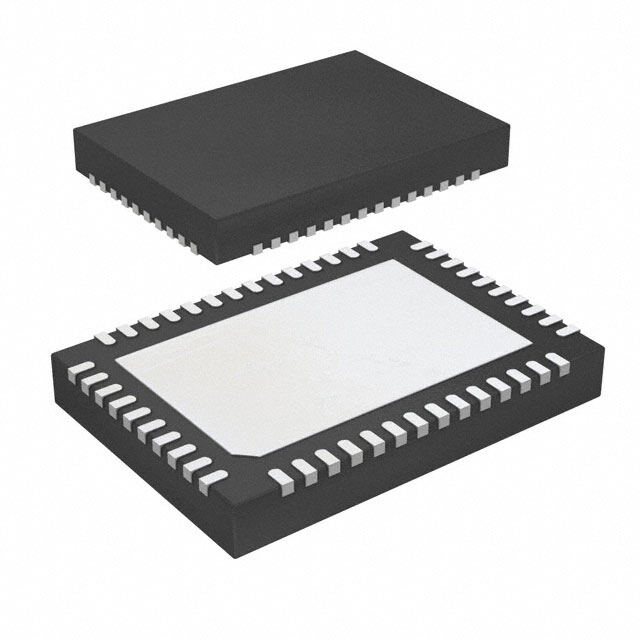

TAS5768MRMTR image
Favorite
TAS5768MRMTR image
Favorite

TAS5768MRMTR

Texas Instruments
RoHS
RoHS RoHS compliant
Package 48-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description 8542.33.00.01 TAS5768 Tape & Reel (TR) Depop Short-Circuit Protection audio amplifier 4.5V 900mum 15mA 50W
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.37035
≥1 USD $5.37035
≥10 USD $4.4061
≥100 USD $4.26835
≥500 USD $4.1306
≥1000 USD $3.99285
Inventory: 14623
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Thickness 900μm
Width 5mm
Length 7mm
Height 1mm

Technical

Gain 20 dB
Bandwidth 22 kHz
Output Power 50W
Supply Current-Max 15mA
Number of Channels 2
Supply Voltage-Min (Vsup) 4.5V
Supply Voltage-Max (Vsup) 26.4V
Output Type 2-Channel (Stereo)
Base Part Number TAS5768
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.4mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 3V~3.6V
HTS Code 8542.33.00.01
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Class D
ECCN Code EAR99
Number of Terminations 48
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature Depop, Short-Circuit Protection
JESD-609 Code e4
Series PurePath?
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C TA

Physical

Number of Pins 48
Package / Case 48-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 8 Weeks
