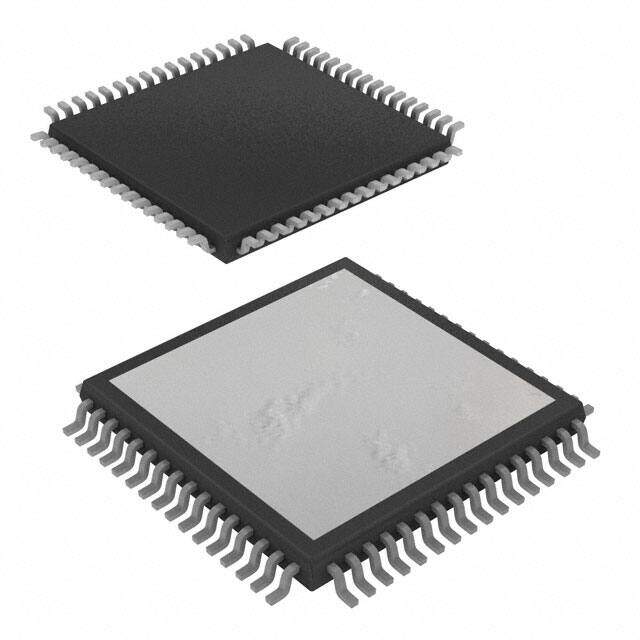

TAS5616PHD
RoHS
RoHS compliant
RoHS compliantPackage 64-TQFP Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.33.00.01 TAS5616 Tray Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown audio amplifier 25V 1mm 300W x 1 @ 4Ohm; 160W x 2 @ 8Ohm 300W
PDF
/
Buying Options
Total Price: USD $4.15
Unit Price: USD $4.147439
≥1 USD $4.147439
≥10 USD $3.912686
≥100 USD $3.691212
≥500 USD $3.482274
≥1000 USD $3.285165
Inventory: 996
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 1mm
Width 14mm
Length 14mm
Height 1.2mm
Technical
Max Output Power x Channels @ Load 300W x 1 @ 4 Ω; 160W x 2 @ 8 Ω
Max Output Power 300W
Power Supply Rejection Ratio (PSRR) 80dB
Output Power 300W
Number of Channels 2
Supply Voltage-Min (Vsup) 25V
Power Supplies 1250V
Supply Voltage-Max (Vsup) 52.5V
Output Type 1-Channel (Mono) or 2-Channel (Stereo)
Pin Count 64
Base Part Number TAS5616
Terminal Pitch 0.8mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Voltage - Supply 25V~52.5V
Subcategory Audio/Video Amplifiers
HTS Code 8542.33.00.01
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Class D
ECCN Code EAR99
Number of Terminations 64
Moisture Sensitivity Level (MSL) 5A (24 Hours)
Part Status Not For New Designs
Pbfree Code yes
Feature Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
JESD-609 Code e4
Series PurePath? HD
Packaging Tray
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 64
Package / Case 64-TQFP Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status NRND (Last Updated: 1 week ago)
