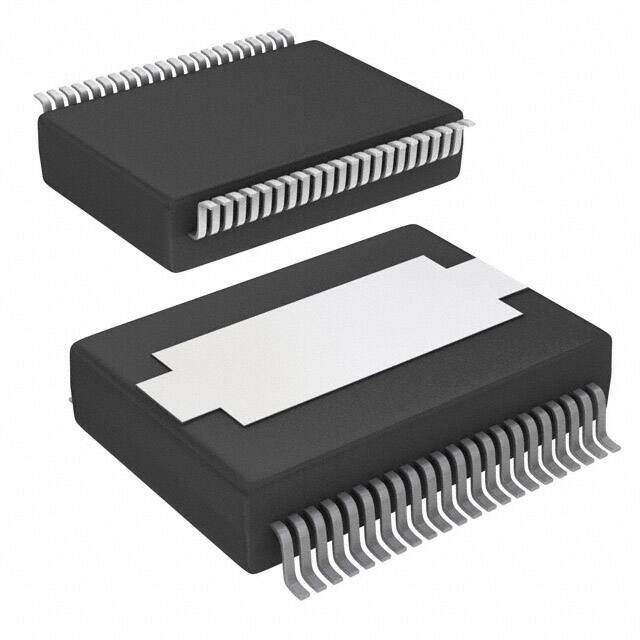

TAS5615DKDR
RoHS
RoHS compliant
RoHS compliantPackage 44-BSSOP (0.433, 11.00mm Width) Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.33.00.01 TAS5615 Tape & Reel (TR) Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown audio amplifier 10.8V 3.5mm 300W x 1 @ 4Ohm; 160W x 2 @ 8Ohm 8mA
PDF
/
Buying Options
Total Price: USD $16.59
Unit Price: USD $16.58985
≥1 USD $16.58985
≥10 USD $13.61255
≥100 USD $13.18695
≥500 USD $12.76135
≥1000 USD $12.3367
Inventory: 302
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 3.5mm
Width 11mm
Length 15.9mm
Height 3.6mm
Technical
Max Output Power x Channels @ Load 300W x 1 @ 4 Ω; 160W x 2 @ 8 Ω
Dual Supply Voltage 50V
Max Output Power 300W
Gain 23 dB
Power Supply Rejection Ratio (PSRR) 80dB
Voltage Gain 23dB
Supply Type Triple
Output Power 300W
Nominal Supply Current 8mA
Number of Channels 2
Supply Voltage-Min (Vsup) 10.8V
Supply Voltage-Max (Vsup) 13.2V
Output Type 1-Channel (Mono) or 2-Channel (Stereo)
Pin Count 44
Base Part Number TAS5615
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 25V~52.5V
Subcategory Audio/Video Amplifiers
HTS Code 8542.33.00.01
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Class D
ECCN Code EAR99
Number of Terminations 44
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Not For New Designs
Pbfree Code yes
Feature Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
JESD-609 Code e4
Series PurePath? HD
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 44
Package / Case 44-BSSOP (0.433, 11.00mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status NRND (Last Updated: 1 week ago)
