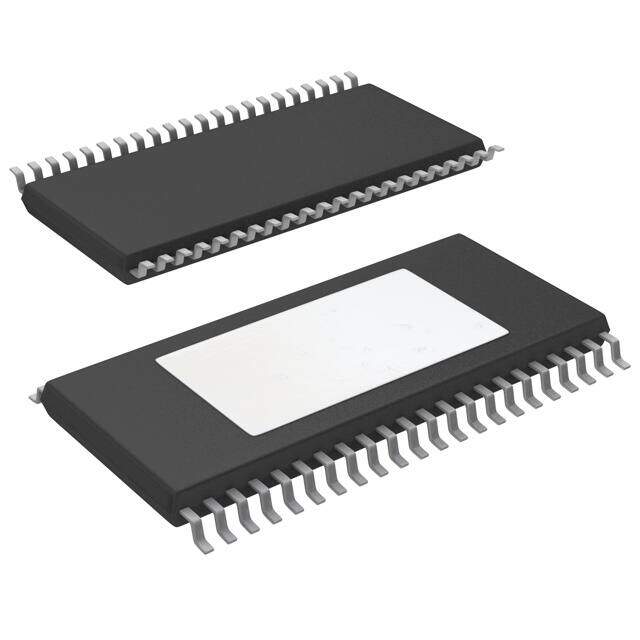

TAS5162DDVR
RoHS
RoHS compliant
RoHS compliantPackage 44-TSSOP (0.244, 6.20mm Width) Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.33.00.01 TAS5162 Tape & Reel (TR) Digital Inputs Short-Circuit and Thermal Protection Shutdown audio amplifier 10.8V 1.15mm 210W x 2 @ 6Ohm 15mA
PDF
/
Buying Options
Total Price: USD $16.11
Unit Price: USD $16.10915
≥1 USD $16.10915
≥10 USD $13.2183
≥100 USD $12.80505
≥500 USD $12.3918
≥1000 USD $11.97855
Inventory: 1422
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mounting Type Surface Mount
Package / Case 44-TSSOP (0.244, 6.20mm Width) Exposed Pad
Surface Mount YES
Number of Pins 44
Technical
Operating Temperature 0°C~70°C TA
Packaging Tape & Reel (TR)
Series PurePath Digital?
JESD-609 Code e4
Feature Digital Inputs, Short-Circuit and Thermal Protection, Shutdown
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 44
ECCN Code EAR99
Type Class D
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code 8542.33.00.01
Subcategory Audio/Video Amplifiers
Max Power Dissipation 2.5W
Voltage - Supply 10.8V~13.2V
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.635mm
Base Part Number TAS5162
Pin Count 44
Output Type 2-Channel (Stereo)
Supply Voltage-Max (Vsup) 13.2V
Supply Voltage-Min (Vsup) 10.8V
Number of Channels 2
Nominal Supply Current 15mA
Output Power 400W
Supply Type Triple
Max Output Power 210W
Dual Supply Voltage 50V
Max Output Power x Channels @ Load 210W x 2 @ 6 Ω
Harmonic Distortion 10%
Dimensions
Height 1.2mm
Length 14mm
Width 6.1mm
Thickness 1.15mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
