TAS5110ADAD
RoHS
RoHS compliant

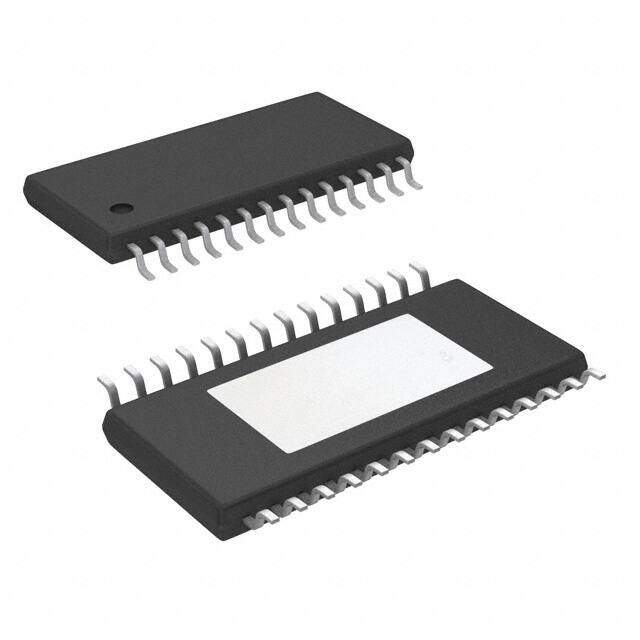

RoHS compliantPackage 32-TSSOP (0.240, 6.10mm Width) Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
GULL WING ROHS3Compliant Contains Lead Surface Mount Amplifier IC Class D 0C~70C TA 50W 2mA 50W x 2 @ 6Ohm
PDF
/
Buying Options
Total Price: USD $14.52
Unit Price: USD $14.516
≥1 USD $14.516
≥10 USD $11.9111
≥100 USD $11.5387
≥500 USD $11.1663
≥1000 USD $10.7939
Inventory: 7394
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 6.1mm
Length 11mm
Height Seated (Max) 1.2mm
Technical
Harmonic Distortion 10%
Max Output Power x Channels @ Load 50W x 2 @ 6 Ω
Max Output Power 50W
Supply Type Single
Output Power 50W
Nominal Supply Current 2mA
Number of Channels 2
Supply Voltage-Min (Vsup) 3V
Power Supplies 3.322V
Supply Voltage-Max (Vsup) 3.6V
Operating Supply Voltage 3.3V
Output Type 2-Channel (Stereo)
Pin Count 32
Base Part Number TAS5110
Terminal Pitch 0.65mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 3V~3.6V
Subcategory Audio/Video Amplifiers
HTS Code 8542.33.00.01
Type Class D
ECCN Code EAR99
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code no
Feature Digital Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown
Series Equibit?, PurePath Digital?
Packaging Tube
Operating Temperature 0°C~70°C TA
Physical
Weight 181.096754mg
Number of Pins 32
Package / Case 32-TSSOP (0.240, 6.10mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
