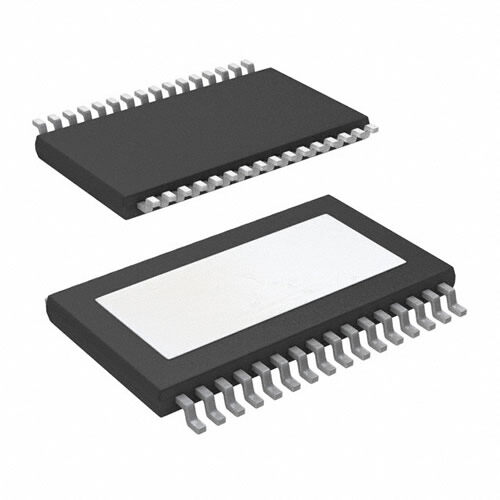

TAS5102DADG4
RoHS
/
Package HTSSOP EP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
IC AMP AUDIO PWR 20W D 32TSSOP
PDF
/
Buying Options
Total Price: USD $21.52
Unit Price: USD $21.522391
≥1 USD $21.522391
≥10 USD $20.304142
≥100 USD $19.154856
≥500 USD $18.070617
≥1000 USD $17.047756
Inventory: 1526
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 6.1mm
Length 11mm
Height Seated (Max) 1.2mm
Technical
Harmonic Distortion 10%
Consumer IC Type AUDIO AMPLIFIER
Power - Output 20W
Dual Supply Voltage 18V
Max Output Power 20W
Supply Type Dual
Output Power 20W
Power Dissipation 600mW
Nominal Supply Current 10mA
Power Dissipation-Max 600mW
Number of Channels 2
Supply Voltage-Min (Vsup) 8V
Temperature Grade COMMERCIAL
Supply Voltage-Max (Vsup) 23V
Pin Count 32
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Subcategory Audio/Video Amplifiers
HTS Code 8542.33.00.01
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e4
Packaging Rail/Tube
Physical
Weight 181.096754mg
Number of Pins 32
Package / Case HTSSOP EP
Mount Surface Mount
