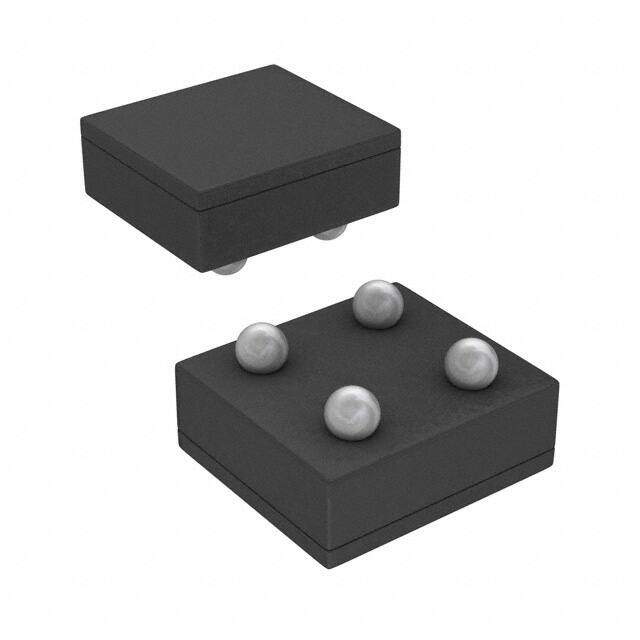

LMV1012TP-15 image
Favorite
LMV1012TP-15 image
Favorite

LMV1012TP-15

Texas Instruments
RoHS
RoHS RoHS compliant
Package 4-UFBGA, DSBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description EAR99 LMV1012 Tape & Reel (TR) Microphone audio amplifier 2V 1.006mm 300muA 15.6dB
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.344542
≥1 USD $0.344542
≥10 USD $0.325037
≥100 USD $0.306636
≥500 USD $0.289286
≥1000 USD $0.272917
Inventory: 1730
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 0.93mm
Length 1.006mm
Height Seated (Max) 0.5mm

Technical

Harmonic Distortion 0.09%
Voltage Gain 15.6dB
Bandwidth 95000 kHz
Quiescent Current 180μA
Nominal Supply Current 300μA
Number of Channels 1
Supply Voltage-Min (Vsup) 2V
Supply Voltage-Max (Vsup) 5V
Operating Supply Voltage 3V
Output Type 1-Channel (Mono)
Pin Count 4
Base Part Number LMV1012
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2V~5V
Terminal Finish TIN SILVER COPPER
Type Class AB
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Microphone
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA

Physical

Number of Pins 4
Package / Case 4-UFBGA, DSBGA
Mounting Type Surface Mount
Mount Surface Mount
