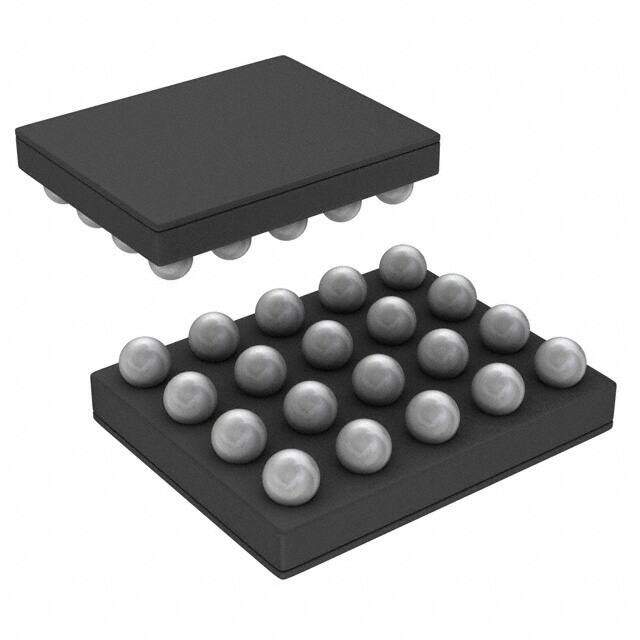

LM49200TLX/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 20-UFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
BALL ROHS3Compliant Lead Free Surface Mount audio amplifier -40C~85C TA 80dB 1.25W 9.8mA
PDF
/
Buying Options
Total Price: USD $3.61
Unit Price: USD $3.614414
≥1 USD $3.614414
≥200 USD $1.442877
≥500 USD $1.3943
≥1000 USD $1.370668
Inventory: 1490
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 675μm
Width 2.3mm
Length 2.5mm
Height 675μm
Technical
Channel Separation 80 dB
Max Output Power x Channels @ Load 1.25W x 2 @ 8 Ω; 38mW x 2 @ 32 Ω
Dual Supply Voltage 5V
Max Output Power 1.25W
Max Dual Supply Voltage 5.5V
Power Supply Rejection Ratio (PSRR) 90dB
Supply Type Dual
Common Mode Rejection Ratio 60 dB
Output Power 1.25W
Supply Current-Max 9.8mA
Number of Channels 4
Supply Voltage-Min (Vsup) 2.7V
Power Supplies 3.3V
Output Type 2-Channel (Stereo) with Stereo Headphones
Base Part Number LM49200
Terminal Pitch 0.5mm
Number of Functions 3
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.7V~5.5V
Subcategory Audio/Video Amplifiers
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Class AB
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Depop, Differential Inputs, I2C, Shutdown, Thermal Protection, Volume Control
JESD-609 Code e1
Series Boomer?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 20
Package / Case 20-UFBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 16 Weeks
