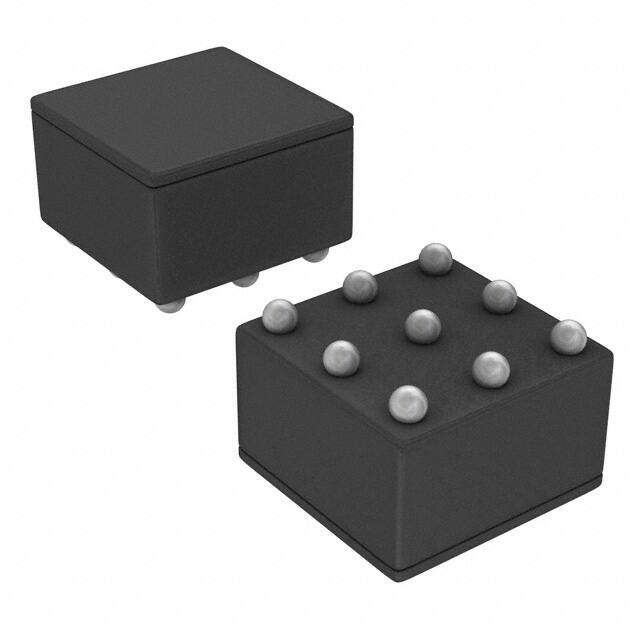

LM4894IBP
RoHS
/
Package 9-VFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.33.00.01 LM4894 Tape & Reel (TR) Depop Differential Inputs Shutdown Thermal Protection audio amplifier 2.2V 1.361mm 1.4W x 1 @ 4Ohm 4mA
PDF
/
Buying Options
Total Price: USD $9.39
Unit Price: USD $9.38505
≥1 USD $9.38505
≥10 USD $7.7007
≥100 USD $7.4594
≥500 USD $7.21905
≥1000 USD $6.9787
Inventory: 1222
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 1.336mm
Length 1.361mm
Height Seated (Max) 0.85mm
Technical
Harmonic Distortion 1%
Max Output Power x Channels @ Load 1.4W x 1 @ 4 Ω
Max Output Power 1.4W
Bandwidth 20 kHz
Output Power 1W
Supply Current-Max 8mA
Quiescent Current 4mA
Number of Channels 1
Supply Voltage-Min (Vsup) 2.2V
Power Supplies 3/5V
Supply Voltage-Max (Vsup) 5.5V
Output Type 1-Channel (Mono)
Qualification Status Not Qualified
Pin Count 9
Base Part Number LM4894
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.2V~5.5V
Subcategory Audio/Video Amplifiers
HTS Code 8542.33.00.01
Terminal Finish Tin/Lead (Sn63Pb37)
Type Class AB
Number of Terminations 9
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
Pbfree Code no
Feature Depop, Differential Inputs, Shutdown, Thermal Protection
JESD-609 Code e0
Series Boomer?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 9
Package / Case 9-VFBGA
Mounting Type Surface Mount
Mount Surface Mount
