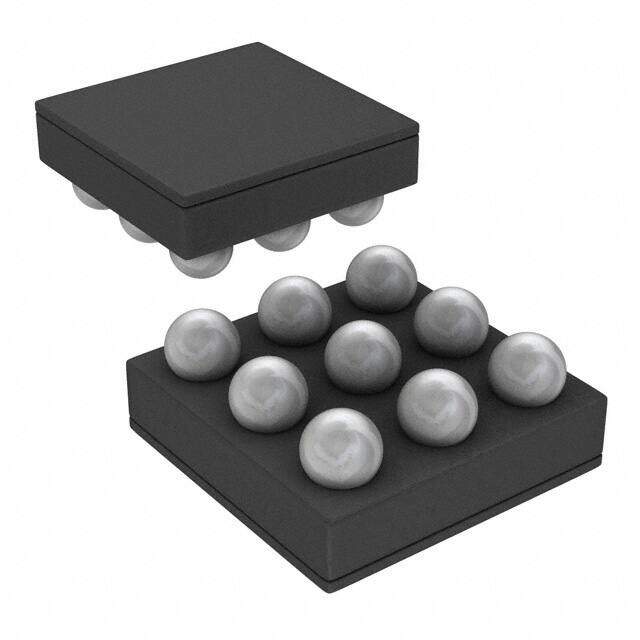

LM4890ITL/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 9-WFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
BALL ROHS3Compliant Surface Mount Obsolete audio amplifier -40C~85C TA 20kHz 1W 10mA
PDF
/
Buying Options
Total Price: USD $29.68
Unit Price: USD $29.678
≥1 USD $29.678
≥10 USD $24.35135
≥100 USD $23.5904
≥500 USD $22.82945
≥1000 USD $22.0685
Inventory: 1619
Minimum: 1
-
+
Technical Details
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series Boomer?
JESD-609 Code e1
Feature Depop, Shutdown, Thermal Protection
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Class AB
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
HTS Code 8542.33.00.01
Subcategory Audio/Video Amplifiers
Voltage - Supply 2.2V~5.5V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number LM4890
Pin Count 9
Qualification Status Not Qualified
Output Type 1-Channel (Mono)
Supply Voltage-Max (Vsup) 5.5V
Power Supplies 2.6/5V
Supply Voltage-Min (Vsup) 2.2V
Number of Channels 1
Supply Current-Max 10mA
Output Power 1W
Bandwidth 20 kHz
Max Output Power 1W
Max Output Power x Channels @ Load 1W x 1 @ 8 Ω
Harmonic Distortion 2%
Physical
Number of Pins 9
Package / Case 9-WFBGA
Mounting Type Surface Mount
Mount Surface Mount
Dimensions
Height Seated (Max) 0.675mm
Length 1.514mm
Width 1.514mm
Compliance
RoHS Status ROHS3 Compliant
