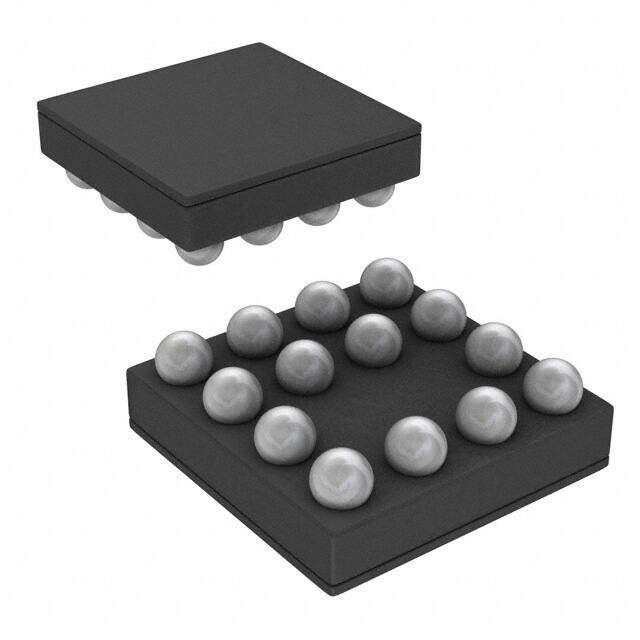

LM48820TMX/NOPB image
Favorite
LM48820TMX/NOPB image
Favorite

LM48820TMX/NOPB

Texas Instruments
RoHS
RoHS RoHS compliant
Package 14-WFBGA, DSBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description EAR99 LM48820 Tape & Reel (TR) Depop Shutdown Thermal Protection audio amplifier 1.6V 420mum 95mW x 2 @ 16Ohm 5.5mA
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.88005
≥1 USD $1.88005
≥10 USD $1.5428
≥100 USD $1.49435
≥500 USD $1.4459
≥1000 USD $1.39745
Inventory: 551
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 14-WFBGA, DSBGA
Number of Pins 14

Technical

Operating Temperature -40??C ̄85??C TA
Packaging Tape & Reel (TR)
Series Boomer??
JESD-609 Code e1
Feature Depop, Shutdown, Thermal Protection
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 14
ECCN Code EAR99
Type Class AB
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature SNR IS 100DB
Subcategory Audio/Video Amplifiers
Voltage - Supply 1.6V ̄4.5V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.4mm
Base Part Number LM48820
Pin Count 14
Output Type Headphones, 2-Channel (Stereo)
Supply Voltage-Max (Vsup) 5V
Power Supplies 3V
Supply Voltage-Min (Vsup) 1.6V
Number of Channels 2
Supply Current-Max 5.5mA
Output Power 95mW
Supply Type Single
Bandwidth 22 kHz
Voltage Gain 3.52dB
Power Supply Rejection Ratio (PSRR) 80dB
Max Output Power 95mW
Max Output Power x Channels @ Load 95mW x 2 @ 16 ??

Dimensions

Height 675??m
Length 0m
Width 0m
Thickness 420??m

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
