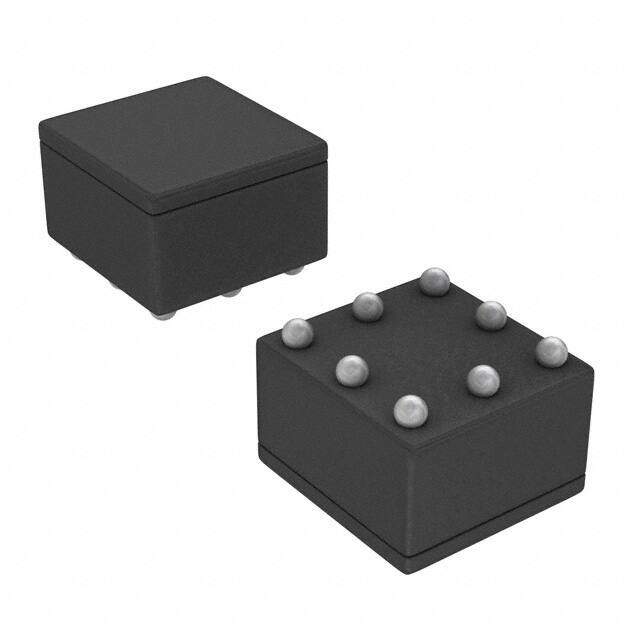

LM4865IBP/NOPB image
Favorite
LM4865IBP/NOPB image
Favorite

LM4865IBP/NOPB

Texas Instruments
RoHS
RoHS RoHS compliant
Package 8-VFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description BALL ROHS3Compliant Surface Mount Obsolete audio amplifier -40C~85C TA 50dB 1W 7mA
PDF
/
Inventory: 2746
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 1.336mm
Length 1.412mm
Height Seated (Max) 0.95mm

Technical

Max Output Power x Channels @ Load 1W x 1 @ 8 Ω; 110mW x 1 @ 32 Ω
Max Output Power 1W
Power Supply Rejection Ratio (PSRR) 50dB
Supply Current-Max 7mA
Number of Channels 1
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 5.5V
Output Type 1-Channel (Mono) with Mono Headphones
Base Part Number LM4865
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.7V~5.5V
Type Class AB
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Depop, Mute, Shutdown, Thermal Protection, Volume Control
Series Boomer?
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C TA

Physical

Number of Pins 8
Package / Case 8-VFBGA
Mounting Type Surface Mount
Mount Surface Mount
