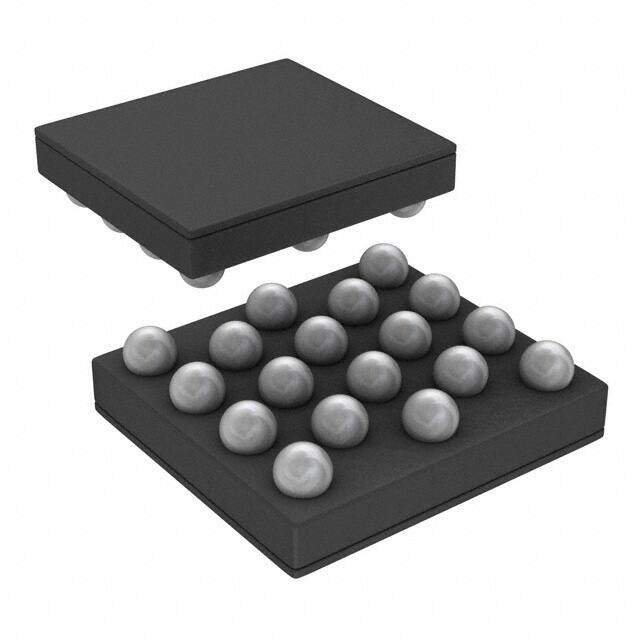

LM48413TL/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 18-WFBGA, DSBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
EAR99 LM48413 Tape & Reel (TR) 3D Depop Differential Inputs E2S Short-Circuit Protection Shutdown audio amplifier 5V 675mum 1.5W x 2 @ 8Ohm 5.2mA
PDF
/
Buying Options
Total Price: USD $2.5
Unit Price: USD $2.4992
≥1 USD $2.4992
≥10 USD $2.24664
≥100 USD $2.119744
≥500 USD $1.806024
Inventory: 531
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 675μm
Width 1.8mm
Length 2.5mm
Height 675μm
Technical
Load Impedance 8 Ω
Max Output Power x Channels @ Load 1.5W x 2 @ 8 Ω
Dual Supply Voltage 5V
Min Dual Supply Voltage 4V
Max Output Power 1.5W
Max Dual Supply Voltage 5.5V
Power Supply Rejection Ratio (PSRR) 91dB
Voltage Gain 24dB
Supply Type Single
Common Mode Rejection Ratio 72 dB
Output Power 1.2W
Nominal Supply Current 5.2mA
Number of Channels 2
Power Supplies 3.6V
Output Type 2-Channel (Stereo)
Base Part Number LM48413
Terminal Pitch 0.43mm
Number of Functions 2
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.4V~5.5V
Subcategory Audio/Video Amplifiers
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Class D
ECCN Code EAR99
Number of Terminations 18
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature 3D, Depop, Differential Inputs, E2S, Short-Circuit Protection, Shutdown
JESD-609 Code e1
Series Boomer?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 18
Package / Case 18-WFBGA, DSBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 16 Weeks
