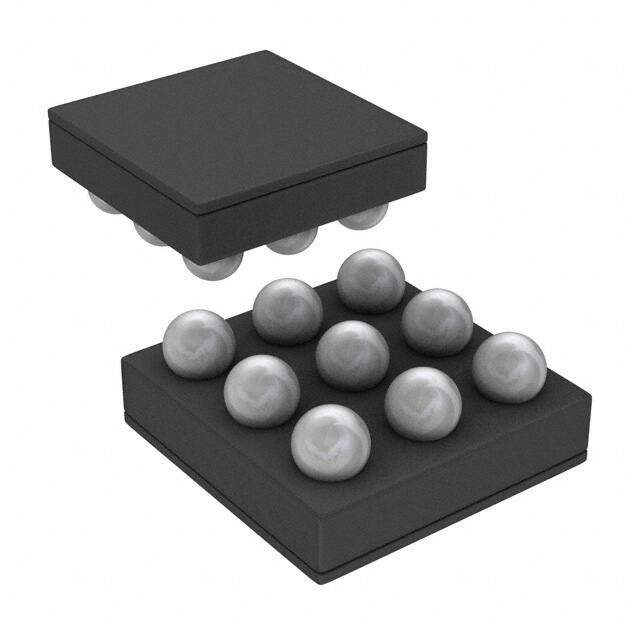

LM48312TLE/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 9-WFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
e1 LM48312 Tape & Reel (TR) Depop Differential Inputs E2S Short-Circuit Protection Shutdown audio amplifier 2.5V 675mum 2.6W x 1 @ 4Ohm 3.1mA
PDF
/
Buying Options
Total Price: USD $1.84
Unit Price: USD $1.8392
≥1 USD $1.8392
≥10 USD $1.65352
≥100 USD $1.559712
≥500 USD $1.328976
Inventory: 287
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 675μm
Width 1.8mm
Length 2mm
Height 675μm
Technical
Max Output Power x Channels @ Load 2.6W x 1 @ 4 Ω
Max Output Power 2.6W
Power Supply Rejection Ratio (PSRR) 71dB
Common Mode Rejection Ratio 65 dB
Output Power 2.6W
Quiescent Current 3.1mA
Nominal Supply Current 3.1mA
Number of Channels 1
Supply Voltage-Min (Vsup) 2.5V
Power Supplies 2.5/5V
Supply Voltage-Max (Vsup) 5.5V
Output Type 1-Channel (Mono)
Qualification Status Not Qualified
Base Part Number LM48312
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.4V~5.5V
Subcategory Audio/Video Amplifiers
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Class D
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Depop, Differential Inputs, E2S, Short-Circuit Protection, Shutdown
JESD-609 Code e1
Series Boomer?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 9
Package / Case 9-WFBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
