LM48311TLX/NOPB
RoHS
RoHS compliant

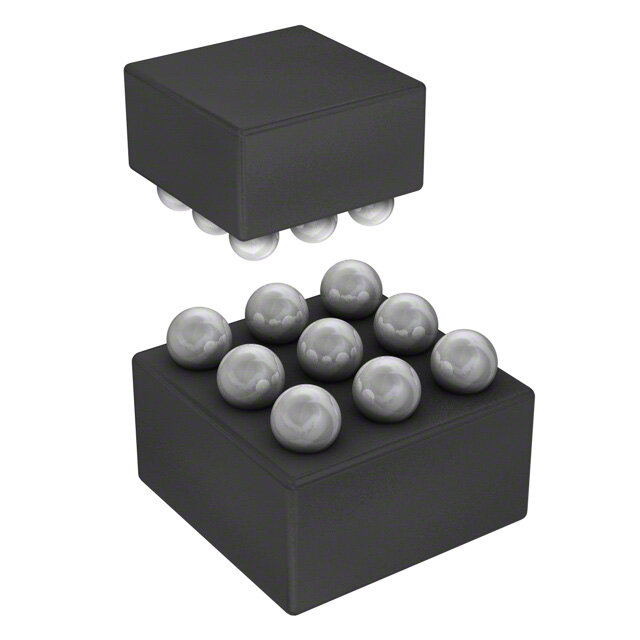

RoHS compliantPackage 9-WFBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
BALL ROHS3Compliant Lead Free Surface Mount Amplifier IC Class D -40C~85C TA 86dB 2.6W 2.6W x 1 @ 4Ohm
PDF
/
Buying Options
Total Price: USD $9.4
Unit Price: USD $9.3974
≥1 USD $9.3974
≥10 USD $7.7102
≥100 USD $7.46985
≥500 USD $7.22855
≥1000 USD $6.9882
Inventory: 54
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 675μm
Width 1.8mm
Length 2mm
Height 675μm
Technical
Harmonic Distortion 10%
Max Output Power x Channels @ Load 2.6W x 1 @ 4 Ω
Max Output Power 2.6W
Power Supply Rejection Ratio (PSRR) 78dB
Voltage Gain 6dB
Supply Type Single
Common Mode Rejection Ratio 86 dB
Output Power 2.6W
Number of Channels 1
Supply Voltage-Min (Vsup) 2.4V
Operating Supply Voltage 5V
Output Type 1-Channel (Mono)
Base Part Number LM48311
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.4V~5.5V
Subcategory Audio/Video Amplifiers
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Class D
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Depop, Differential Inputs, E2S, Short-Circuit Protection, Shutdown
JESD-609 Code e1
Series Boomer?, PowerWise?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 9
Package / Case 9-WFBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
