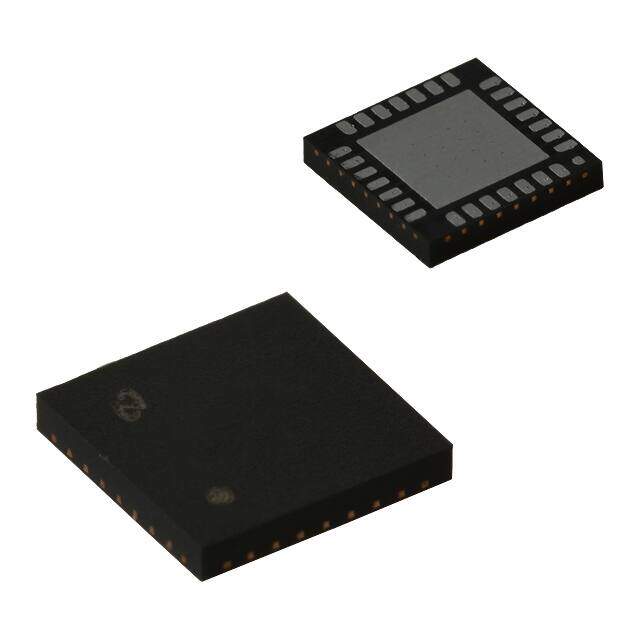

LM4804LQX
RoHS
/
Package 28-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
8542.33.00.01 LM4804 Tape & Reel (TR) Depop Short-Circuit and Thermal Protection Shutdown audio amplifier 3V 5mm 1.9W x 1 @ 8Ohm 1.9W
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.580006
≥1 USD $1.580006
≥10 USD $1.490573
≥100 USD $1.406201
≥500 USD $1.326598
≥1000 USD $1.251513
Inventory: 1501
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Width 5mm
Length 5mm
Height Seated (Max) 0.8mm
Technical
Harmonic Distortion 2%
Max Output Power x Channels @ Load 1.9W x 1 @ 8 Ω
Dual Supply Voltage 5V
Max Output Power 1.9W
Power Supply Rejection Ratio (PSRR) 72dB
Supply Type Dual
Output Power 1.9W
Number of Channels 1
Supply Voltage-Min (Vsup) 3V
Supply Voltage-Max (Vsup) 5V
Output Type 1-Channel (Mono)
Pin Count 28
Base Part Number LM4804
Terminal Pitch 0.5mm
Number of Functions 1
Terminal Position QUAD
Voltage - Supply 2.7V~6.1V
Max Power Dissipation 1.8W
Subcategory Audio/Video Amplifiers
HTS Code 8542.33.00.01
Type Class AB
ECCN Code EAR99
Number of Terminations 28
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Depop, Short-Circuit and Thermal Protection, Shutdown
Series Boomer?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 28
Package / Case 28-WFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
