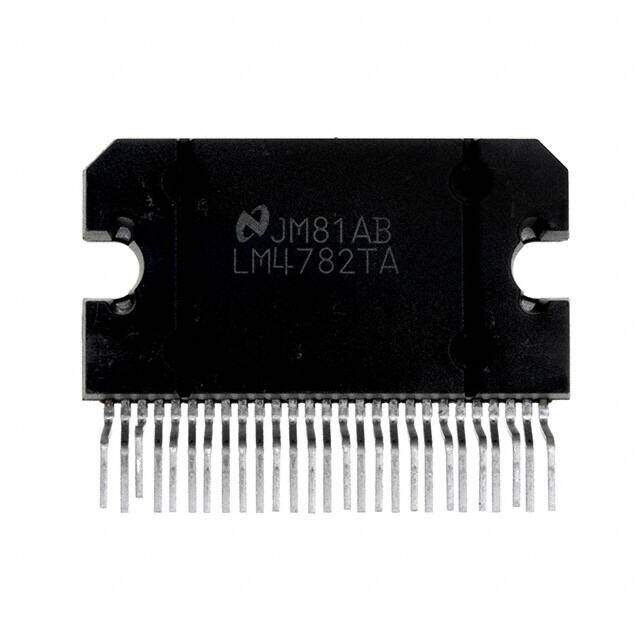

LM4782TA/NOPB
RoHS
RoHS compliant
RoHS compliantPackage TO-220-27 Formed Leads
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
ROHS3Compliant Contains Lead Through Hole Obsolete Amplifier IC Class AB -20C~85C TA 7.5MHz 80dB 25W
PDF
/
Buying Options
Total Price: USD $9.4
Unit Price: USD $9.3974
≥1 USD $9.3974
≥10 USD $7.7102
≥100 USD $7.46985
≥500 USD $7.22855
≥1000 USD $6.9882
Inventory: 61
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Max Output Power x Channels @ Load 25W x 3 @ 8 Ω
Input Bias Current 500nA
Dual Supply Voltage 28V
Min Dual Supply Voltage 10V
Max Output Power 25W
Max Dual Supply Voltage 32V
Power Supply Rejection Ratio (PSRR) 115dB
Voltage Gain 110dB
Gain Bandwidth Product 7.5MHz
Bandwidth 20 kHz
Input Offset Voltage (Vos) 15mV
Supply Type Dual, Single
Common Mode Rejection Ratio 80 dB
Output Power 25W
Quiescent Current 75mA
Power Dissipation 125W
Nominal Supply Current 75mA
Number of Channels 3
Power Supplies +-25V
Output Type 3-Channel
Base Part Number LM4782
Terminal Pitch 1mm
Number of Functions 1
Terminal Position ZIG-ZAG
Voltage - Supply 20V~64V ±10V~32V
Max Power Dissipation 125W
Subcategory Audio/Video Amplifiers
Additional Feature OPERATES WITH 20V TO 64V SUPPLY
Terminal Finish Matte Tin (Sn)
Type Class AB
ECCN Code EAR99
Number of Terminations 27
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Depop, Mute, Short-Circuit and Thermal Protection, Standby
JESD-609 Code e3
Series Overture?
Packaging Tube
Operating Temperature -20°C~85°C TA
Physical
Number of Pins 27
Surface Mount NO
Package / Case TO-220-27 Formed Leads
Mounting Type Through Hole
